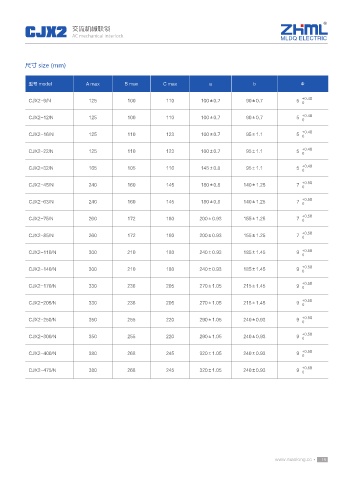

CJX2 交流机械联锁
AC mechanical interlock
MLDQ ELECTRIC

尺寸 size (mm)

型号 model A max B max C max a b Φ

CJX2-9/N 125 100 110 100±0.7 90±0.7 5 +0.48
0
CJX2-12/N 125 100 110 100±0.7 90±0.7 5 +0.48
0
+0.48
CJX2-16/N 125 110 123 100±0.7 95±1.1 5 0

CJX2-22/N 125 110 123 100±0.7 95±1.1 5 +0.48
0

CJX2-32/N 165 105 116 145±0.8 95±1.1 5 +0.48
0
CJX2-45/N 240 160 145 180±0.8 140±1.25 7 +0.58
0

CJX2-63/N 240 160 145 180±0.8 140±1.25 7 +0.58
0
+0.58
CJX2-75/N 260 172 160 200±0.93 155±1.25 7 0

+0.58
CJX2-85/N 260 172 160 200±0.93 155±1.25 7 0
CJX2-110/N 300 210 180 240±0.93 185±1.45 9 +0.58
0

+0.58
CJX2-140/N 300 210 180 240±0.93 185±1.45 9 0
+0.58
CJX2-170/N 330 236 205 270±1.05 215±1.45 9 0

CJX2-205/N 330 236 205 270±1.05 215±1.45 9 +0.58
0

CJX2-250/N 350 255 220 290±1.05 240±0.93 9 +0.58
0
+0.58
CJX2-300/N 350 255 220 290±1.05 240±0.93 9 0

+0.58
CJX2-400/N 380 268 245 320±1.05 240±0.93 9
0
+0.58
CJX2-475/N 380 268 245 320±1.05 240±0.93 9 0
