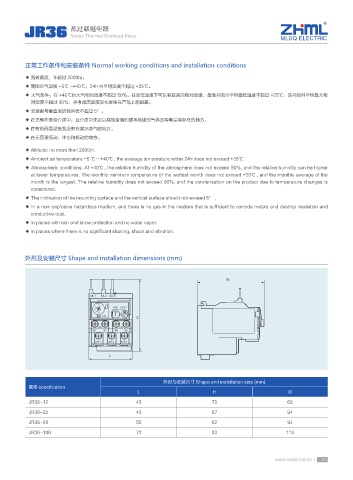

JR36 热过载继电器
Series Thermal Overload Relay
MLDQ ELECTRIC

正常工作条件和安装条件 Normal working conditions and installation conditions

◆ 海拔高度：不超过 2000m。
◆ 周围空气温度 -5℃ ~+40℃，24h 内平均温度不超过 +35℃。
◆ 大气条件：在 +40℃时大气相对湿度不超过 50%，在较低温度下可以有较高的相对湿度，最湿月的月平均最低温度不超过 +25℃，该月的月平均最大相
对湿度不超过 90％，并考虑因温度变化发生在产品上的凝露。
◆ 安装面与垂直面的倾斜度不超过 5°。
◆ 在无爆炸危险介质中，且介质中无足以腐蚀金属和破坏绝缘的气体及导电尘埃存在的地方。
◆ 在有防雨雪设备及没有充满水蒸气的地方。
◆ 在无显著摇动、冲击和振动的地方。

◆ Altitude: no more than 2000m.
◆ Ambient air temperature -5 ℃ ~ +40℃ , the average temperature within 24h does not exceed +35℃ .
◆ Atmospheric conditions: At +40℃ , the relative humidity of the atmosphere does not exceed 50%, and the relative humidity can be higher
at lower temperatures. The monthly minimum temperature of the wettest month does not exceed +25℃ , and the monthly average of the
month is the largest. The relative humidity does not exceed 90%, and the condensation on the product due to temperature changes is
considered.
◆ The inclination of the mounting surface and the vertical surface should not exceed 5° .
◆ In a non-explosive hazardous medium, and there is no gas in the medium that is sufficient to corrode metals and destroy insulation and
conductive dust.
◆ In places with rain and snow protection and no water vapor.
◆ In places where there is no significant shaking, shock and vibration.

外形及安装尺寸 Shape and installation dimensions (mm)

W

1/L1/L1 3/L2 5/L3
1
A
9 STOP RESET
11 10
T A H
12
TEST
H
NO NC
98 97 96 95
2/T1 4/T2 6/T3
L

外形与安装尺寸 Shape and installation size (mm)
规格 specification
L H W
JR36-12 45 73 68
JR36-25 45 67 94
JR36-38 55 82 94
JR36-100 72 83 118

www.maolong.cc • 21
