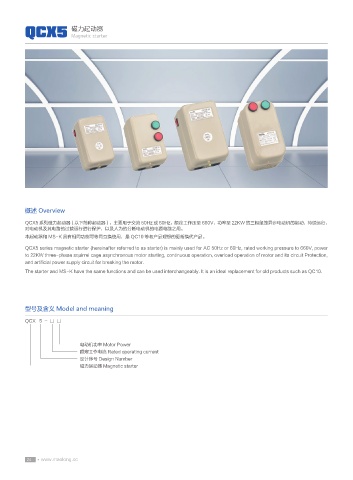

QCX5 磁力起动器
Magnetic starter

概述 Overview
QCX5 系列磁力起动器（以下简称起动器），主要用于交流 50Hz 或 60Hz，额定工作压至 660V，功率至 22KW 的三相鼠笼异步电动机的起动，持续运行，
对电动机及其电路的过载运行进行保护，以及人为的分断电动机的电源电路之用。
本起动器和 MS-K 具有相同功能可等同互换使用，是 QC10 等老产品理想的更新换代产品。

QCX5 series magnetic starter (hereinafter referred to as starter) is mainly used for AC 50Hz or 60Hz, rated working pressure to 660V, power
to 22KW three-phase squirrel cage asynchronous motor starting, continuous operation, overload operation of motor and its circuit Protection,
and artificial power supply circuit for breaking the motor.
The starter and MS-K have the same functions and can be used interchangeably. It is an ideal replacement for old products such as QC10.

型号及含义 Model and meaning

QCX 5 - □ □

电动机功率 Motor Power
额定工作电流 Rated operating current
设计序号 Design Number
磁力起动器 Magnetic starter
