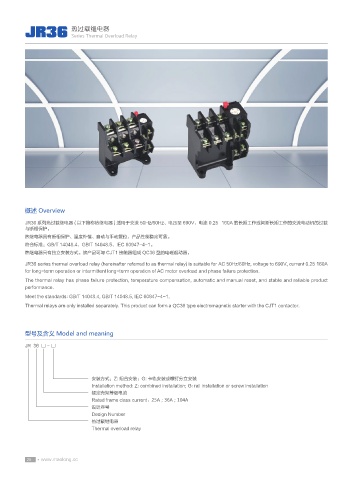

JR36 热过载继电器
Series Thermal Overload Relay

概述 Overview
JR36 系列热过载继电器 ( 以下简称热继电器 ) 适用于交流 50Hz/60Hz、电压至 690V，电流 0.25 160A 的长期工作或间断长期工作的交流电动机的过载
与断相保护。
热继电器具有断相保护、温度补偿、自动与手动复位、产品性能稳定可靠。
符合标准：GB/T 14048.4、GB/T 14048.5、IEC 60947-4-1。
热继电器只有独立安装方式。该产品可与 CJT1 接触器组成 QC36 型的电磁起动器。
JR36 series thermal overload relay (hereinafter referred to as thermal relay) is suitable for AC 50Hz/60Hz, voltage to 690V, current 0.25 160A
for long-term operation or intermittent long-term operation of AC motor overload and phase failure protection.
The thermal relay has phase failure protection, temperature compensation, automatic and manual reset, and stable and reliable product
performance.
Meet the standards: GB/T 14048.4, GB/T 14048.5, IEC 60947-4-1.
Thermal relays are only installed separately. This product can form a QC36 type electromagnetic starter with the CJT1 contactor.

型号及含义 Model and meaning

JR 36 □ - □

安装方式：Z: 组合安装；G: 卡轨安装或螺钉分立安装
Installation method: Z: combined installation; G: rail installation or screw installation
额定壳架等级电流
Rated frame class current：25A；36A；104A
设计序号
Design Number
热过载继电器
Thermal overload relay
