DZ47 小型断路器
Miniature Circuit Breaker
MLDQ ELECTRIC

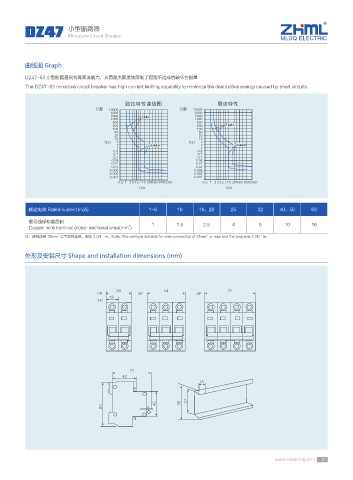

曲线图 Graph

DZ47-63 小型断路器具有高限流能力，从而最大限度地限制了短路所造成的破坏性能量
The DZ47-63 miniature circuit breaker has high current limiting capability to minimize the destructive energy caused by short circuits.

ᑱ੭ྱবఛጲڎ ᬌึྱব
$ۋ %ۋ

U T U T

* *O * *O
额定电流 Rated current In(A) 1~6 10 16、20 25 32 40、50 63
铜导线标称截面积 1 1.5 2.5 4 6 10 16
2
Copper wire nominal cross-sectional area(mm )
2
2
注：接线适用 25mm 以下导线连接，扭矩 2.0N·m。Note: The wiring is suitable for wire connection of 25mm or less and the torque is 2.0N·m.
外形及安装尺寸 Shape and installation dimensions (mm)

1 1 1

1
