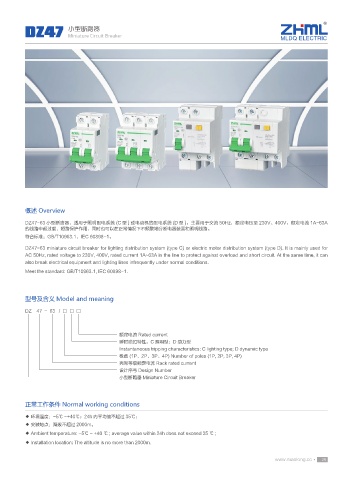

DZ47 小型断路器
Miniature Circuit Breaker
MLDQ ELECTRIC

概述 Overview
DZ47-63 小型断路器，适用于照明配电系统 (C 型 ) 或电动机的配电系统 (D 型 )。主要用于交流 50Hz，额定电压至 230V、400V，额定电流 1A~63A
的线路中起过载、短路保护作用，同时也可以在正常情况下不频繁地分断电器装置和照明线路。
符合标准：GB/T10963.1、IEC 60898-1。

DZ47-63 miniature circuit breaker for lighting distribution system (type C) or electric motor distribution system (type D). It is mainly used for
AC 50Hz, rated voltage to 230V, 400V, rated current 1A~63A in the line to protect against overload and short circuit. At the same time, it can
also break electrical equipment and lighting lines infrequently under normal conditions.
Meet the standard: GB/T10963.1, IEC 60898-1.

型号及含义 Model and meaning

DZ 47 - 63 / □ □ □

额定电流 Rated current
瞬时脱扣特性：C 照明型；D 动力型
Instantaneous tripping characteristics: C lighting type; D dynamic type
极数 (1P、2P、3P、4P) Number of poles (1P, 2P, 3P, 4P)
壳架等级额定电流 Rack rated current
设计序号 Design Number
小型断路器 Miniature Circuit Breaker

正常工作条件 Normal working conditions

◆ 环境温度：-5℃ ~+40℃；24h 内平均值不超过 35℃；
◆ 安装地点：海拔不超过 2000m。
◆ Ambient temperature: -5℃ ~ +40 ℃ ; average value within 24h does not exceed 35 ℃ ;
◆ Installation location: The altitude is no more than 2000m.

www.maolong.cc • 29
