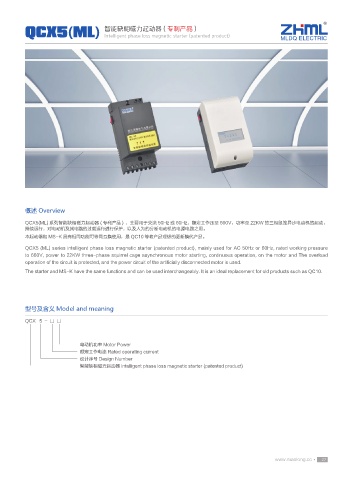

Page 31 - 浙江茂隆电气有限公司

QCX5(ML) 智能缺相磁力起动器 ( 专利产品 )
Intelligent phase loss magnetic starter (patented product)
MLDQ ELECTRIC

概述 Overview
QCX5(ML) 系列智能缺相磁力起动器 ( 专利产品 ) ，主要用于交流 50Hz 或 60Hz，额定工作压至 660V，功率至 22KW 的三相鼠笼异步电动机的起动，
持续运行，对电动机及其电路的过载运行进行保护，以及人为的分断电动机的电源电路之用。
本起动器和 MS-K 具有相同功能可等同互换使用，是 QC10 等老产品理想的更新换代产品。

QCX5 (ML) series intelligent phase loss magnetic starter (patented product), mainly used for AC 50Hz or 60Hz, rated working pressure
to 660V, power to 22KW three-phase squirrel cage asynchronous motor starting, continuous operation, on the motor and The overload
operation of the circuit is protected, and the power circuit of the artificially disconnected motor is used.
The starter and MS-K have the same functions and can be used interchangeably. It is an ideal replacement for old products such as QC10.

型号及含义 Model and meaning

QCX 5 - □ □

电动机功率 Motor Power
额定工作电流 Rated operating current
设计序号 Design Number
智能缺相磁力起动器 Intelligent phase loss magnetic starter (patented product)
