电抗器系列
           Reactor series

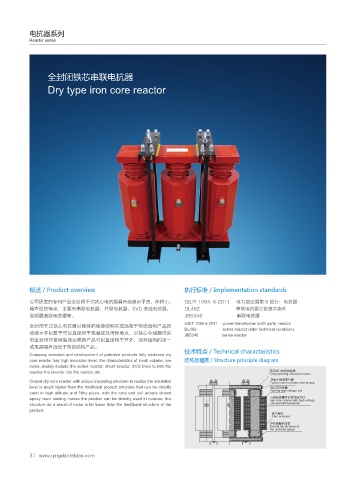

                 全封闭铁芯串联电抗器

                 Dry type iron core reactor









































           概述 / Product overview                                执行标准 / Implementation standards

           公司研发的专利产品全封闭干式铁心电抗器具有绝缘水平高、体积小、                      GB/T 1094. 6-2011    电力变压器第 6 部分：电抗器
           噪声低的特点，主要有串联电抗器、并联电抗器、SVG 进线电抗器、                     DL462                        串联电抗器订货技术条件
           变频器进线电抗器等。                                           JB5346                      串联电抗器
                                                                GB/T 1094 6-2011     power transformer sixth parts: reactor
           全封闭干式铁心电抗器以独特的绝缘结构实现远高于传统结构产品的                       DL462                       series reactor order technical conditions
           绝缘水平以致于可以直接用于高海拔及污秽地点，以铁心与线圈均采                       JB5346                     series reactor
           用全封闭环氧树脂浇注使得产品可以直接用于户外，这种结构的另一
           成果是噪声远低于传统结构产品。
           Company research and development of patented products fully enclosed dry   技术特点 / Technical characteristics
           core reactor has high insulation level, the characteristics of small volume, low   结构原理图 / Structure principle diagram
           noise, mainly include the series reactor, shunt reactor, SVG lines to into the
           reactor, the inverter into the reactor, etc.                                       ဖඬฺซ࠯᫆ᄉᨠᣁ
                                                                                              &QPYZ QPVSJOH DMPTFE JSPO ZPLF
           Closed dry core reactor with unique insulating structure to realize the insulation   ဖඬ˞ፏᎅЩචᬨ
                                                                                              &QPYZ NBJO JOTVMBUJPO BOE BJS HBQ
           level is much higher than the traditional product structure that can be directly   ฺซᰳԌጲړ
                                                                                              1PVSJOH IJHI WPMUBHF DPJM
           used in high altitude and filthy place, with the core and coil adopts closed
           epoxy resin casting makes the product can be directly used in outdoor, this        ˀᰳԌጲړኍႂͮᄉᨠᔆಎ
                                                                                              *SPO DPSF DPMVNO XJUI IJHI WPMUBHF
           structure as a result of noise is far lower than the traditional structure of the   DPJM BOE PUIFS QPUFOUJBM
           product.
                                                                                               ᨠᔆቪಎ
                                                                                               $PSF FOE QPTU
                                                                                              ढ᫁ྒྷᡯᄉ͙Ꮕ
                                                                                              &YUFOE UIF EJTUBODF PG
                                                                                              UIF VNCSFMMB HSPVQ
