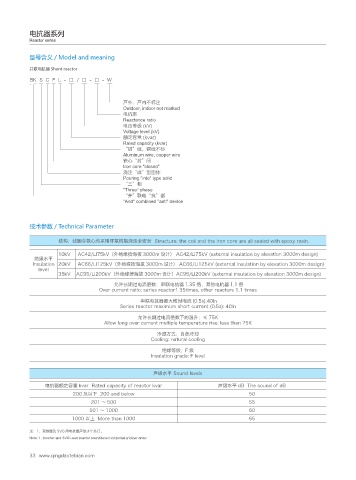

电抗器系列
Reactor series

型号含义 / Model and meaning
并联电抗器 Shunt reactor
BK S C F L - □ / □ - □ - W

户外，户内不标注
Outdoor, indoor not marked
电抗率
Reactance ratio
电压等级 (kV)
Voltage level (kV)
额定容量 (kvar)
Rated capacity (kvar)
“铝”线，铜线不标
Aluminum wire, copper wire
铁心“封”闭
Iron core "closed"
浇注“成”型固体
Pouring "into" type solid
“三”相
"Three" phase
“并”联电“抗”器
"And" combined "anti" device

技术参数 / Technical Parameter

结构：线圈与铁心均采用环氧树脂浇注全密封 Structure: the coil and the iron core are all sealed with epoxy resin.

10kV AC42/LI75kV（外绝缘按海拔 3000m 设计） AC42/LI75kV (external insulation by elevation 3000m design)
绝缘水平
Insulation 20kV AC66/LI125kV（外绝缘按海拔 3000m 设计） AC66/LI125kV (external insulation by elevation 3000m design)
level
35kV AC95/LI200kV（外绝缘按海拔 3000m 设计）AC95/LI200kV (external insulation by elevation 3000m design)
允许长期过电流倍数：串联电抗器 1.35 倍，其他电抗器 1.1 倍
Over current ratio: series reactor1.35times, other reactors 1.1 times
串联电抗器最大短时电流 (0.5s):40In
Series reactor maximum short current (0.5s): 40In

允许长期过电流倍数下的温升：≤ 75K
Allow long over current multiple temperature rise: less than 75K
冷却方式：自然冷却
Cooling: natural cooling

绝缘等级：F 级
Insulation grade: F level

声级水平 Sound levels
电抗器额定容量 kvar Rated capacity of reactor kvar 声级水平 dB The sound of dB
200 及以下 200 and below 50
201 ～ 500 55
501 ～ 1000 60
1000 以上 More than 1000 65

注：1、变频器及 SVG 用电抗器声级水平另订。
Note: 1, Inverter and SVG used reactor sound level horizontal another order.
