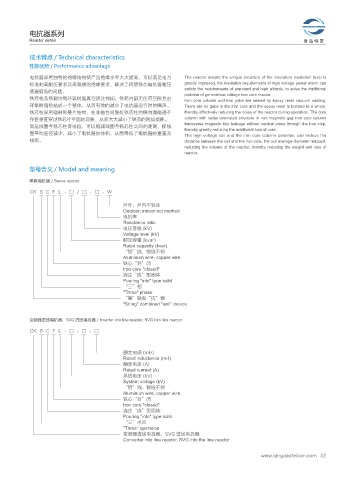

电抗器系列
Reactor series 青 岛 特 变

技术特点 / Technical characteristics
性能优势 / Performance advantage
电抗器采用独特的绝缘结构使产品绝缘水平大大提高，可以满足电力 The reactor adopts the unique structure of the insulation insulation level is
标准的高耐压要求及高海拔的绝缘要求，解决了传统铁芯电抗器耐压 greatly improved, the insulation requirements of high voltage power which can
普遍偏低的问题。 satisfy the requirements of standard and high altitude, to solve the traditional
problem of general low voltage iron core reactor.
铁芯柱及铁轭均用环氧树脂真空浇注封闭，铁芯内部无任何空隙且由 Iron core column and iron yoke are sealed by epoxy resin vacuum casting.
环氧树脂粘结成一个整体，从而有效的减小了电抗器运行时的噪声。 There are no gaps in the iron core and the epoxy resin is bonded to a whole,
铁芯柱采用辐射形叠片结构，在非磁性间隙处铁芯柱的横向漏磁通不 thereby effectively reducing the noise of the reactor during operation. The core
存在垂直穿过铁芯片平面的现象，从而大大减小了铁芯的附加损耗。 column with radial laminated structure in non magnetic gap iron core column
高压线圈与铁芯柱等电位，可以缩减线圈与铁芯柱之间的距离，使线 transverse magnetic flux leakage without vertical plane through the iron chip,
thereby greatly reducing the additional loss of core.
圈平均直径减少，减小了电抗器的体积，从而降低了电抗器的重量及 The high voltage coil and the iron core column potential, can reduce the
线损。 distance between the coil and the iron core, the coil average diameter reduced,
reducing the volume of the reactor, thereby reducing the weight and loss of
reactor.

型号含义 / Model and meaning
串联电抗器 / Series reactor

CK S C F L - □ / □ - □ - W
户外，户内不标注
Outdoor, indoor not marked
电抗率
Reactance ratio
电压等级 (kV)
Voltage level (kV)
额定容量 (kvar)
Rated capacity (kvar)
“铝”线，铜线不标
Aluminum wire, copper wire
铁心“封”闭
Iron core "closed"
浇注“成”型固体
Pouring "into" type solid
“三”相
"Three" phase
“串”联电“抗”器
"String" combined "anti" device

变频器进线电抗器、SVG 进线电抗器 / Inverter into line reactor, SVG into line reactor
CK S C F L - □ - □ - □

额定电感 (mH)
Rated inductance (mH)
额定电流 (A)
Rated current (A)
系统电压 (kV)
System voltage (kV)
“铝”线，铜线不标
Aluminum wire, copper wire
铁心“封”闭
Iron core "closed"
浇注“成”型固体
Pouring "into" type solid
“三”术目
"Three" operation
变频器进线电抗器、SVG 进线电抗器
Converter into line reactor, SVG into the line reactor
