非晶合金变压器系列
Amorphous alloy transformer series

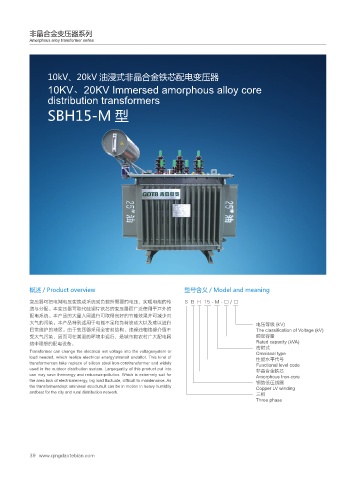

10kV、20kV 油浸式非晶合金铁芯配电变压器

10KV、20KV Immersed amorphous alloy core
distribution transformers

SBH15-M 型

概述 / Product overview 型号含义 / Model and meaning

变压器可把电网电压变换成系统或负载所需要的电压，实现电能的传 S B H 15 - M - □ / □
递与分配。本变压器可取代硅钢片铁芯的变压器而广泛使用于户外的
配电系统。本产品的大量入网运行可取得良好的节能效果并可减少对
大气的污染。本产品特别适用于电能不足和负荷波动大以及难以进行 电压等级 (kV)
日常维护的地区。由于变压器采用全密封结构，绝缘油和绝缘介质不 The classification of Voltage (kV)
受大气污染，因而可在潮湿的环境中运行，是城市和农村广大配电网 额定容量
络中理想的配电设备。 Rated capacity (kVA)
密封式
Transformer can change the electrical net voltage into the voltagesystem or Omniseal type
load needed, which realize electrical energy'stransit andallot. This kind of 性能水平代号
transformercan take replace of silicon steel iron-coretransformer and widely Functional level code
used in the outdoor distribution system. Largequatity of this product put into 非晶合金铁芯
use may save theenergy and reduceair-pollution. Which is extremely suit for Amorphous Iron-core
the area lack of electricalenergy, big load fluctuate, difficult to maintenance. As 铜箔低压线圈
the transformeradopt ominiseal structure,it can be in motion in heavy humidity Copper LV winding
andbest for the city and rural distribution network.
三相
Three phase
