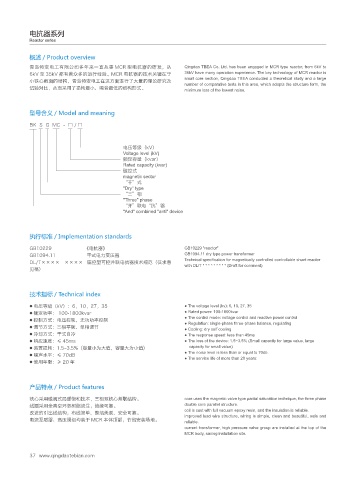

电抗器系列
Reactor series

概述 / Product overview
青岛特变电工有限公司多年来一直从事 MCR 型电抗器的研发，从 Qingdao TBEA Co. Ltd. has been engaged in MCR type reactor, from 6kV to
6kV 至 35kV 都有着众多的运行经验。MCR 电抗器的技术关键在于 35kV have many operation experience. The key technology of MCR reactor is
小铁心截面的结构，青岛特变电工在这方面进行了大量的理论研究及 small core section, Qingdao TBEA conducted a theoretical study and a large
number of comparative tests in this area, which adopts the structure form, the
试验对比，从而采用了损耗最小、噪音最低的结构形式。 minimum loss of the lowest noise.

型号含义 / Model and meaning

BK S G MC - □ / □

电压等级（kV）
Voltage level (kV)
额定容量（kvar）
Rated capacity (kvar)
磁控式
magnetic sector
“干”式
"Dry" type
“三”相
"Three" phase
“并”联电“抗”器
"And" combined "anti" device

执行标准 / Implementation standards

GB10229 《电抗器》 GB10229 "reactor"
GB1094.11 干式电力变压器 GB1094.11 dry type power transformer
DL/T××××—×××× 磁控型可控并联电抗器技术规范（征求意 Technical specification for magnetically controlled controllable shunt reactor
with DL/T * * * * * * * * * (Draft for comment)
见稿）

技术指标 / Technical index

● 电压等级（kV）：6，10，27，35 ● The voltage level (kv): 6, 10, 27, 35
● 额定功率： 100-1800kvar ● Rated power: 100-1800kvar
● The control mode: voltage control and reactive power control
● 控制方式：电压控制、无功功率控制
● Regulation: single-phase three-phase balance, regulating
● 调节方式：三相平衡、单相调节
● Cooling: dry self cooling
● 冷却方式：干式自冷 ● The response speed: less than 45ms
● 响应速度：≤ 45ms ● The loss of the device: 1.5~3.5% (Small capacity for large value, large
● 装置损耗：1.5~3.5%（容量小为大值，容量大为小值） capacity for small value)
● The noise level is less than or equal to 70db.
● 噪声水平：≤ 70dB
● The service life of more than 20 years:
● 使用年限：≥ 20 年

产品特点 / Product features

铁心采用磁阀式局部饱和技术，三相双铁心并联结构。 core uses the magnetic valve type partial saturation technique, the three phase
线圈采用全真空环氧树脂浇注，绝缘可靠。 double core parallel structure.
改进的引出线结构，布线简单、整洁美观、安全可靠。 coil is cast with full vacuum epoxy resin, and the insulation is reliable.
improved lead wire structure, wiring is simple, clean and beautiful, safe and
电流互感器、高压阀组均装于 MCR 本体顶部，节省安装场地。 reliable.
current transformer, high pressure valve group are installed at the top of the
MCR body, saving installation site.
