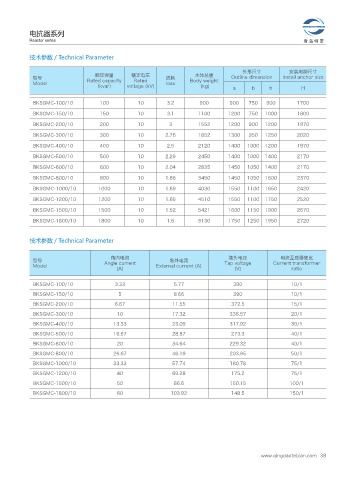

电抗器系列
Reactor series 青 岛 特 变

技术参数 / Technical Parameter

外形尺寸 安装地脚尺寸
额定容量 额定电压 本体总重
型号 损耗 Outline dimension Install anchor size
Model Rated capacity Rated loss Body weight
（kvar） voltage (kV) (kg) a b h H

BKSGMC-100/10 100 10 3.2 900 900 750 900 1700
BKSGMC-150/10 150 10 3.1 1100 1200 750 1000 1800
BKSGMC-200/10 200 10 3 1552 1200 900 1200 1970
BKSGMC-300/10 300 10 2.76 1852 1300 950 1250 2020

BKSGMC-400/10 400 10 2.5 2120 1400 1000 1200 1970
BKSGMC-500/10 500 10 2.29 2450 1400 1000 1400 2170
BKSGMC-600/10 600 10 2.04 2835 1450 1050 1400 2170

BKSGMC-800/10 800 10 1.86 3450 1450 1050 1600 2370
BKSGMC-1000/10 1000 10 1.69 4030 1550 1100 1650 2420
BKSGMC-1200/10 1200 10 1.65 4510 1550 1100 1750 2520
BKSGMC-1500/10 1500 10 1.52 5421 1600 1150 1900 2670

BKSGMC-1800/10 1800 10 1.5 6130 1750 1250 1950 2720

技术参数 / Technical Parameter

角内电流 抽头电压 电流互感器变比
型号 Angle current 角外电流 Tap voltage Current transformer
Model External current (A)
(A) (V) ratio
BKSGMC-100/10 3.33 5.77 390 10/1

BKSGMC-150/10 5 8.66 390 10/1
BKSGMC-200/10 6.67 11.55 372.5 15/1
BKSGMC-300/10 10 17.32 336.57 20/1
BKSGMC-400/10 13.33 23.09 317.92 30/1
BKSGMC-500/10 16.67 28.87 273.3 40/1
BKSGMC-600/10 20 34.64 229.32 40/1
BKSGMC-800/10 26.67 46.19 203.95 50/1

BKSGMC-1000/10 33.33 57.74 180.78 75/1
BKSGMC-1200/10 40 69.28 175.2 75/1
BKSGMC-1500/10 50 86.6 150.15 100/1
BKSGMC-1800/10 60 103.92 148.5 150/1
