箱式变电站系列
Box-type substation series 青 岛 特 变

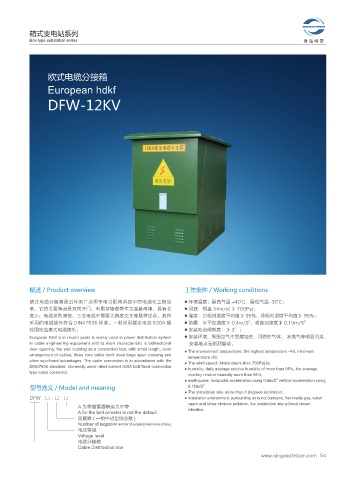

欧式电缆分接箱

European hdkf

DFW-12KV

概述 / Product overview 工作条件 / Working conditions

欧式电缆分接箱是近年来广泛用于电力配网系统中的电缆化工程设 ● 环境温度：最高气温 +40℃，最低气温 -30℃；
备，它的主要特点是双向开门、利用穿墙套管作为连接母排，具有长 ● 风速：相当 34m/s( ≯ 700Pa)；
度小、电缆排列清楚、三芯电缆不需要大跨度交叉等显著优点。其所 ● 湿度：日相对湿度平均值≯ 95%，月相对湿度平均值≯ 95%；
2
2
采用的电缆接头符合 DIN47636 标准。一般采用额定电流 630A 螺 ● 防震：水平加速度≯ 0.4m/s ，垂直加速度≯ 0.15m/S
栓固定连接式电缆接头。 ● 安装地点倾斜度：≯ 3°；
European hdkf is in recent years is widely used in power distribution system ● 安装环境：周围空气不受腐蚀性、可燃性气体、 水蒸气等明显污染，
in cable engineering equipment and its main characteristic is bidirectional 安装地点无剧烈震动。
door opening, the wall bushing as a connection bus, with small length, clear ● The environment temperature: the highest temperature +40, minimum
arrangement of cables, three core cable don't need large span crossing and temperature -30;
other significant advantages. The cable connection is in accordance with the ● The wind speed: 34m/s (more than 700Pa) is;
DIN47636 standard. Generally used rated current 630A bolt fixed connection ● humidity: daily average relative humidity of more than 95%, the average
type cable connector.
monthly relative humidity more than 95%;
● earthquake: horizontal acceleration using 0.4m/S vertical acceleration using
2
型号含义 / Model and meaning 0.15m/S 2
● The installation site: more than 3 degrees inclination;
DFW □ - □ □ ● Installation environment: surrounding air is not corrosive, flammable gas, water
vapor and other obvious pollution, the installation site without violent
A 为带避雷器缺省为不带 vibration.
A for the belt arrester is not the default
回路数 ( 一相中进出线总数 )
Number of loops(total number of outgoing lines inone phase)
电压等级
Voltage level
电缆分接箱
Cable Distribution box
