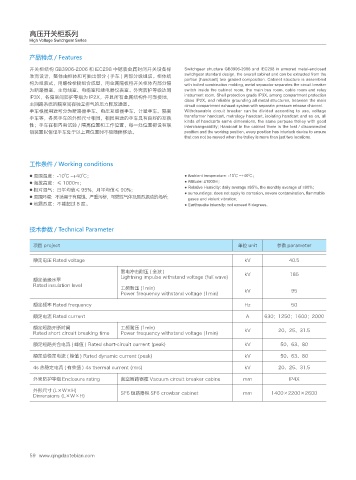

高压开关柜系列
High Voltage Switchgear Series

产品特点 / Features
开关柜结构 GB3906-2006 和 IEC298 中铠装金属封闭开关设备标 Switchgear structure GB3906-2006 and IEC298 in armored metal-enclosed
准而设计，整体由柜体和可抽出部分 ( 手车 ) 两部分级组成。柜体结 switchgear standard design, the overall cabinet and can be extracted from the
portion (handcart) two graded composition. Cabinet structure is assembled
构为组装式，用螺栓栓接组合成型，用金属隔板将开关柜体内部分隔 with bolted combination molding, metal separator separates the circuit breaker
为断路器室、主母线室、电缆室和继电器仪表室。外壳防护等级达到 switch inside the cabinet room, the main bus room, cable room and relay
IP3X，各隔室间防护等级为 IP2X，并且所有金属结构件可靠接地， instrument room. Shell protection grade IP3X, among compartment protection
class IP2X, and reliable grounding all metal structures, between the main
主回路系统的隔室间有独立排气的压力释放通道。 circuit compartment exhaust system with separate pressure release channel.
手车根据用途可分为断路器手车、电压互感器手车、计量手车、隔离 Withdrawable circuit breaker can be divided according to use, voltage
手车等，各类手车的外形尺寸相同，相同用途的手车具有良好的互换 transformer handcart, metrology handcart, isolating handcart and so on, all
kinds of handcarts same dimensions, the same purpose trolley with good
性；手车在柜内有试验 / 隔离位置和工作位置，每一处位置都设有联 interchangeability; Handcart in the cabinet there is the test / disconnected
锁装置以保证手车处于以上两位置时不能随便移动。 position and the working position, every position has interlock device to ensure
that can not be moved when the trolley is more than just two locations.

工作条件 / Working conditions

● 周围温度：-10℃ ~+40℃； ● Ambient temperature: -10℃ ~+40℃；
● 海拔高度：≤ 1000m； ● Altitude: ≤1000m;
● Relative Humidity: daily average ≤95%, the monthly average of ≤90%;
● 相对湿气：日平均值≤ 95%，月平均值≤ 90%；
● surroundings: does not apply to corrosion, severe contamination, flammable
● 周围环境：不适用于有腐蚀、严重污秽，可燃性气体及剧烈振动的场所；
gases and violent vibration;
● 地震烈度：不能超过 8 度。 ● Earthquake intensity: not exceed 8 degrees.

技术参数 / Technical Parameter

项目 project 单位 unit 参数 parameter

额定电压 Rated voltage kV 40.5

雷电冲击耐压 ( 全波 ) kV 185
Lightning impulse withstand voltage (full wave)
额定绝缘水平
Rated insulation level
工频耐压 (1min)
Power frequency withstand voltage (1min) kV 95
额定频率 Rated frequency Hz 50
额定电流 Rated current A 630；1250；1600；2000

额定短路开断时间 工频耐压 (1min)
Rated short circuit breaking time Power frequency withstand voltage (1min) kV 20、25、31.5
额定短路关合电流 ( 峰值 ) Rated short-circuit current (peak) kV 50、63、80

额定动稳定电流 ( 峰值 ) Rated dynamic current (peak) kV 50、63、80
4s 热稳定电流 ( 有效值 ) 4s thermal current (rms) kV 20、25、31.5

外壳防护等级 Enclosure rating 真空断路器柜 Vacuum circuit breaker cabine mm IP4X
外形尺寸 (L×W×H) SF6 短路器柜 SF6 crowbar cabinet mm 1400×2200×2600
Dimensions (L×W×H)
