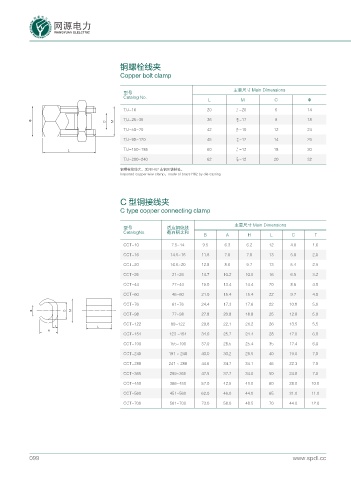

铜螺栓线夹

Copper bolt clamp

主要尺寸 Main Dimensions
型号
Catalog No.
L M C Φ
T/J-16 20 1" 2 -20 6 14

 % / T/J-25~35 36 11" 16 -17 9 18
T/J-50-70 42 7" 8 -10 12 24

T/J-90~120 45 15" 16 -12 14 26
. T/J-150~185 60 1" 8 -12 18 30
T/J-200~240 62 3" 16 -12 20 32
铜螺栓接线夹，采用 H62 黄铜压铸制造。
Imported copper wire clamp，made of brass H62 by die casting

C 型铜接线夹
C type copper connecting clamp

主要尺寸 Main Dimensions
型号 适应铜绞线
CatalogNo. 截面积之和
B A H L C T
CCT-10 7.5~14 9.5 6.3 6.2 12 4.0 1.6
CCT-16 14.5~16 11.8 7.8 7.8 13 5.0 2.0
CCT-20 16.5~20 12.8 8.6 9.7 13 5.4 2.9
CCT-26 21~26 14.7 10.2 10.0 16 6.5 3.2

CCT-44 27~44 19.0 13.4 14.4 20 8.5 4.0
CCT-60 45~60 21.0 15.4 15.4 22 9.7 4.0
CCT-76 61~76 24.4 17.3 17.6 22 10.8 5.0
 % /
CCT-98 77~98 27.8 20.8 18.8 25 12.8 5.0
CCT-122 99~122 29.8 22.1 21.2 26 13.5 5.5
6 .
*
CCT-154 123 ~154 34.0 25.7 24.4 28 17.0 6.0
CCT-190 155~190 37.0 28.5 25.4 35 17.4 6.0

CCT-240 191 ~ 240 40.0 30.2 28.5 40 19.0 7.0
CCT-288 241 ~ 288 44.5 34.7 34.1 45 22.3 7.0
CCT-365 289~365 47.5 37.7 34.0 50 24.8 7.0
CCT-450 366~450 57.0 42.5 41.0 60 28.0 10.0
CCT-560 451~560 62.0 46.0 44.0 65 31.0 11.0
CCT-700 561~700 73.0 58.0 48.5 70 44.0 12.0

099 www.spdl.cc
