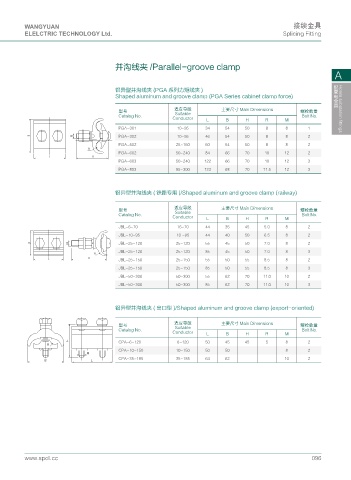

Page 118 - 网源电力科技有限公司

WANGYUAN 接续金具
ELELCTRIC TECHNOLOGY Ltd. Splicing Fitting

并沟线夹 /Parallel-groove clamp
A

铝异型并沟线夹 (PGA 系列力矩线夹 )
Shaped aluminum and groove clamp (PGA Series cabinet clamp force)

适应导线 主要尺寸 Main Dimensions 配变电金具 Hotels substation fittings
型号 Suitable 螺栓数量
Catalog No. Bolt No.
Conductor L B H R M
PGA-301 10~95 34 54 50 8 8 1
$ / PGA-302 10~95 46 54 50 8 8 2
PGA-502 25~150 50 54 50 8 8 2
4
PGA-602 50~240 84 66 70 10 12 2
. *
PGA-603 50~240 122 66 70 10 12 3
PGA-803 95~300 133 68 70 11.5 12 3

铝异型并沟线夹 ( 铁路专用 )/Shaped aluminum and groove clamp (railway)

适应导线 主要尺寸 Main Dimensions
型号 Suitable 螺栓数量
Catalog No. Bolt No.
Conductor L B H R M
JBL-6-70 16~70 44 35 45 5.0 8 2
JBL-10-95 10 ~95 44 40 50 6.5 8 2
$ / JBL-25-120 25~120 55 45 50 7.0 8 2
JBL-25-120 25~120 85 45 50 7.0 8 3
4
. *
JBL-25-150 25~150 55 50 55 8.5 8 2
JBL-25-150 25~150 85 50 55 8.5 8 3
JBL-50-300 50-300 55 62 70 11.0 10 2
JBL-50-300 50-300 85 62 70 11.0 10 3

铝异型并沟线夹 ( 出口型 )/Shaped aluminum and groove clamp (export-oriented)

适应导线 主要尺寸 Main Dimensions
型号 Suitable 螺栓数量
Catalog No. Bolt No.
Conductor L B H R M
* CPA-6~120 6~120 50 45 45 5 8 2
4
CPA-10~150 10-150 50 50 8 2
/
CPA-35~185 35-185 64 62 10 2
$ .

www.spdl.cc 096
