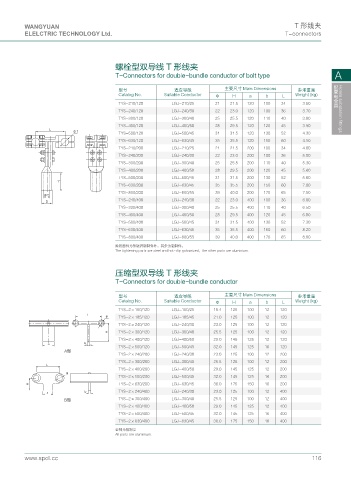

WANGYUAN T 形线夹
ELELCTRIC TECHNOLOGY Ltd. T-connectors

螺栓型双导线 T 形线夹

T-Connectors for double-bundle conductor of bolt type A

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Φ H a b L Weight (kg)
TYS-210/120 LGJ-210/25 21 21.5 120 100 34 3.50
TYS-240/120 LGJ-240/30 22 23.0 120 100 36 3.70 配变电金具 Hotels substation fittings
TYS-300/120 LGJ-300/40 25 25.5 120 110 40 3.80
TYS-400/120 LGJ-400/50 28 29.5 120 120 45 3.90
.
 TYS-500/120 LGJ-500/45 31 31.5 120 130 52 4.30
TYS-630/120 LGJ-630/45 35 35.5 120 150 60 4.50
TYS-210/200 LGJ-210/25 21 21.5 200 100 34 4.80
TYS-240/200 LGJ-240/30 22 23.0 200 100 36 5.00
TYS-300/200 LGJ-300/40 25 25.5 200 110 40 5.30
TYS-400/200 LGJ-400/50 28 29.5 200 120 45 5.60
TYS-500/200 LGJ-500/45 31 31.5 200 130 52 5.80
*
TYS-630/200 LGJ-630/45 35 35.5 200 150 60 7.00
TYS-800/200 LGJ-800/55 39 40.0 200 170 65 7.50

& TYS-240/400 LGJ-240/30 22 23.0 400 100 36 6.00
TYS-300/400 LGJ-300/40 25 25.5 400 110 40 6.50
TYS-400/400 LGJ-400/50 28 29.5 400 120 45 6.80
TYS-500/400 LGJ-500/45 31 31.5 400 130 52 7.30
TYS-630/400 LGJ-630/45 35 35.5 400 150 60 8.20
TYS-800/400 LGJ-800/55 39 40.0 400 170 65 8.80
除紧固件为热镀锌钢制件外，其余为铝制件。
The tightening parts are steel and hot-dip galvanized，the other parts are aluminium.

压缩型双导线 T 形线夹
T-Connectors for double-bundle conductor

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Φ H a b L Weight (kg)
TYS-2×150/120 LGJ-150/25 18.4 125 100 12 120
.
 TYS-2×185/120 LGJ-185/45 21.0 125 100 12 120
TYS-2×240/120 LGJ-240/30 23.0 125 100 12 120
* TYS-2×300/120 LGJ-300/40 25.5 125 100 12 120
TYS-2×400/120 LGJ-400/50 29.0 145 125 12 120
C D
TYS-2×500/120 LGJ-500/45 32.0 145 125 16 120
#ތ
TYS-2×240/200 LGJ-240/30 23.0 125 100 12 200
TYS-2×300/200 LGJ-300/40 25.5 125 100 12 200
.
TYS-2×400/200 LGJ-400/50 29.0 145 125 12 200

TYS-2×500/200 LGJ-500/45 32.0 145 125 16 200
* TYS-2×630/200 LGJ-630/45 36.0 175 150 16 200
C D TYS-2×240/400 LGJ-240/30 23.0 125 100 12 400
$ތ TYS-2×300/400 LGJ-300/40 25.5 125 100 12 400
TYS-2×400/400 LGJ-400/50 29.0 145 125 12 400
TYS-2×500/400 LGJ-500/45 32.0 145 125 16 400
TYS-2×630/400 LGJ-630/45 36.0 175 150 16 400
全部为铝制品
All parts are aluminium.
