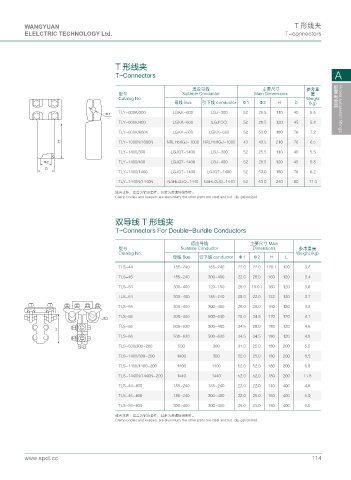

WANGYUAN T 形线夹
ELELCTRIC TECHNOLOGY Ltd. T-connectors

T 形线夹

T-Connectors A

适应导线 主要尺寸 参考重
型号 Suitable Conductor Main Dimensions 量
Catalog No. Weight
母线 Bus 引下线 conductor Φ1 Φ2 H D (kg)
TLY-600K/300 LGKK-600 LGJ-300 52 25.5 110 40 5.5 配变电金具 Hotels substation fittings

TLY-600K/400 LGKK-600 LGJ^OO 52 28.5 120 45 5.8
TLY-600K/600K LGKK-600 LGKK-600 52 53.0 180 76 7.2
* TLY-1000N/1000N NRLH58GJ-1000 NRLH58GJ-1000 43 43.5 210 76 6.5
TLY-1400/300 LGJQT-1400 LGJ-300 52 25.5 110 40 5.5
 TLY-1400/400 LGJQT-1400 LGJ-400 52 28.5 120 45 5.8
&
TLY-1400/1400 LGJQT-1400 LGJQT-1400 52 53.0 180 76 6.2
TLY-1440N/1440N NAHLGJQ-1440 NAHLGJQ-1440 52 53.0 240 80 11.3

线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.

双导线 T 形线夹
T-Connectors For Double-Bundle Conductors

适应导线 主要尺寸 Main
型号 Suitable Conductor Dimensions 参考重量
Catalog No. Weight (kg)
母线 Bus 引下线 conductor Φ1 Φ2 H L
TLS-44 185~240 185~240 22.0 22.0 120 1 120 3.2
TLS-45 185~240 300~400 22.0 28.0 160 120 3.4
TLS-53 300~400 120~150 28.0 18.0 I 160 120 3.6
TLS-54 300~400 185~240 28.0 22.0 122 120 3.7
TLS-55 300~400 300~400 28.0 28.0 160 120 3.9

 TLS-56 300~400 500~630 28.0 34.5 170 120 4.1
TLS-65 500~630 300~400 34.5 28.0 180 120 4.5
*
TLS-66 500~630 500~630 34.5 34.5 180 120 4.8
 TLS-500/300-200 500 300 31.0 25.0 180 200 5.5
TLS-1400/300-200 1400 300 52.0 25.0 180 200 6.5
TLS-1400/1400-200 1400 1400 52.0 52.0 180 200 6.8
TLS-1440N/1440N-200 1440 1440 52.0 52.0 180 200 11.8
TLS-44-400 185~240 185~240 22.0 22.0 140 400 4.8
TLS-45-400 185~240 300~400 22.0 25.0 160 400 5.0

TLS-55-400 300~400 300~400 25.0 25.0 180 400 6.0
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.
