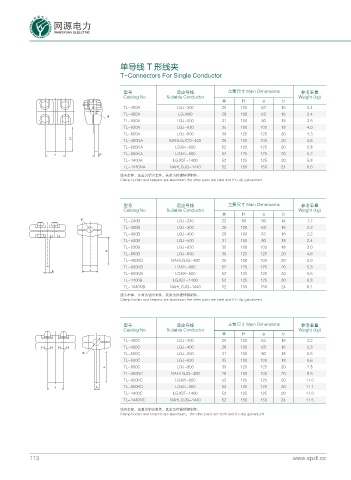

单导线 T 形线夹

T-Connectors For Single Conductor

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Weight (kg)
Φ H a b
TL-300A LGJ-300 25 100 63 16 2.4
TL-400A LGJ400 28 100 63 16 2.4

TL-500A LGJ-500 31 100 80 18 3.5
TL-630A LGJ-630 35 100 100 18 4.0
TL-800A LGJ-800 39 125 125 20 4.3
*
TL-400NA NAHLGJCQ-400 28 100 100 20 4.8
TL-600KA LGKK-600 52 125 125 20 5.8
C D TL-900KA LGKK-900 52 125 125 20 5.2
TL-1400A LGJQT-1400 52 125 125 20 5.8
TL-1440NA NAHLGJQ-1440 52 150 150 24 6.5
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and h^t-dip galvanized.

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Weight (kg)
Φ H a b
 TL-240B LGJ-240 22 80 50 14 1.7
TL-300B LGJ-300 25 100 63 16 2.2
TL-400B LGJ-400 28 100 63 16 2.2
TL-500B LGJ-500 31 100 80 18 2.4
TL-630B LGJ-630 35 100 100 18 3.0
*
TL-800B LGJ-800 39 125 125 20 4.6
TL-400NB NAHLGJQ-400 29 100 100 20 5.0
TL-600KB LGKK-600 52 125 125 20 5.8
D C
TL-900KB LGKK-900 52 125 125 20 5.5
TL-1400B LGJQT-1400 52 125 125 20 6.8
TL-1440NB NAHLGJQ-1440 52 150 150 24 8.1
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and h^t-dip galvanized.

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Weight (kg)
Φ H a b
TL-300C LGJ-300 25 100 63 16 2.2
TL-400C LGJ-400 28 100 63 16 2.3
 TL-500C LGJ-500 31 100 80 18 5.5
TL-630C LGJ-630 35 100 100 18 6.6
* TL-800C LGJ-800 39 125 125 20 7.8
TL-400NC NAHLGJQ-400 28 100 100 20 8.5
TL-600KC LGKK-600 52 125 125 20 11.0
C D TL-900KC LGKK-900 52 125 125 20 11.1
TL-1400C LGJQT-1400 52 125 125 20 11.0
TL-1440NC NAHLGJQ-1440 52 150 150 24 11.5

线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium， the other parts are steel and h^t-dip galvanized.
