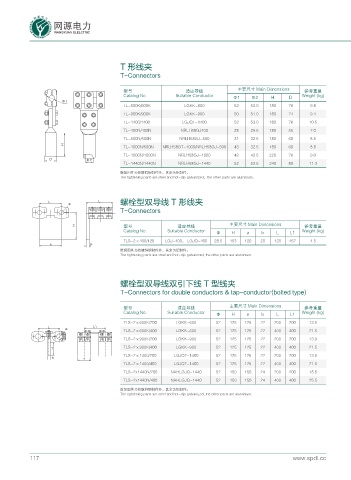

T 形线夹

T-Connectors

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Φ1 Φ2 H D Weight (kg)

TL-600K/600K LGKK-600 52 53.0 180 76 9.8
TL-900K/900K LGKK-900 50 51.0 180 74 9.4
TL-1400/1400 LGJQT-1400 52 53.0 180 76 10.5
TL-400N/400N NRLH58GJ400 28 29.5 180 55 7.0
TL-500N/500N NRLH58GJ-500 31 32.5 180 60 8.5
*
TL-1000N/500N NRLH58GT-1000/NRLH58GJ-500 43 32.5 180 60 8.8
TL-1000N/1000N NRLH58GJ-1000 43 43.5 220 76 9.0
& 
TL-1440N/1440N NRLH58GJ-1440 52 53.5 240 80 11.3
除紧固件为热镀锌钢制件外，其余为铝制件。
The tightening parts are steel and hot-dip galvanized，the other parts are aluminium.

. . 螺栓型双导线 T 形线夹

T-Connectors

* 型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Φ H a b L L1 Weight (kg)
TLS-2×400/120 LGJ-400， LGJQ-400 28.5 153 120 20 120 157 4.5
C D
除紧固件为热镀锌钢制件外，其余为铝制件。
The tightening parts are steel and hot-dip galvanized, the other parts are aluminium.

螺栓型双导线双引下线 T 型线夹
T-Connectors for double conductors & tap-conductor(bolted type)

型号 适应导线 主要尺寸 Main Dimensions 参考重量
Catalog No. Suitable Conductor Weight (kg)
Φ H a b L L1
TLS-2×600K/200 LGKK-600 52 125 125 22 200 200 13.5
. .
 TLS-2×600K/400 LGKK-600 52 125 125 22 400 400 21.5
TLS-2×900K/200 LGKK-900 52 125 125 22 200 200 13.9
TLS-2×900K/400 LGKK-900 52 125 125 22 400 400 21.5
*
TLS-2×1400/200 LGJQT-1400 52 125 125 22 200 200 13.9
D C
TLS-2×1400/400 LGJQT-1400 52 125 125 22 400 400 21.5
TLS-2x1440N/200 NAHLGJQ-1440 52 150 150 24 200 200 18.8
TLS-2x1440N/400 NAHLGJQ-1440 52 150 150 24 400 400 25.5
除紧固件为热镀锌钢制件外，其余为铝制件。
The tightening parts are steel and hot-dip galvanized, the other parts are aluminium.
