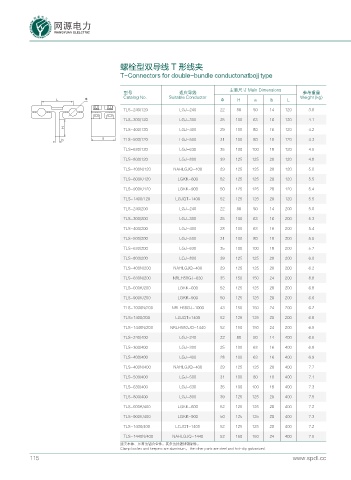

螺栓型双导线 T 形线夹

T-Connectors for double-bundle conductonatbojj type

主要尺寸 Main Dimensions
型号 适应导线 参考重量
Catalog No. Suitable Conductor Weight (kg)
.  Φ H a b L
TLS-240/120 LGJ-240 22 80 50 14 120 3.8
TLS-300/120 LGJ-300 25 100 63 16 120 4.1
* TLS-400/120 LGJ-400 29 100 80 16 120 4.2

D C TLS-500/120 LGJ-500 31 100 80 18 120 4.3
TLS-630/120 LGJ-630 35 100 100 18 120 4.5
TLS-800/120 LGJ-800 39 125 125 20 120 4.8
TLS-400N/120 NAHLGJQ-400 29 125 125 20 120 5.0
TLS-600K/120 LGKK-600 52 125 125 20 120 5.5
TLS-900K/120 LGKK-900 50 125 125 20 120 5.4
TLS-1400/120 LGJQT-1400 52 125 125 20 120 5.5
TLS-240/200 LGJ-240 22 80 50 14 200 5.0
TLS-300/200 LGJ-300 25 100 63 16 200 5.3

TLS-400/200 LGJ-400 28 100 63 16 200 5.4
TLS-500/200 LGJ-500 31 100 80 18 200 5.5
TLS-630/200 LGJ-630 35 100 100 18 200 5.7
TLS-800/200 LGJ-800 39 125 125 20 200 6.0
TLS-400N/200 NAHLGJQ-400 29 125 125 20 200 6.2
TLS-630N/200 NRLH58GJ-630 35 150 150 24 200 8.8
TLS-600K/200 LGKK-600 52 125 125 20 200 6.8

TLS-900K/200 LGKK-900 50 125 125 20 200 6.6
TLS-1000N/200 NRLH58GJ-1000 43 150 150 24 200 6.2
TLS-1400/200 LGJQT-1400 52 125 125 20 200 6.8
TLS-1440N/200 NRLH58GJQ-1440 52 150 150 24 200 6.5
TLS-240/400 LGJ-240 22 80 50 14 400 6.5
TLS-300/400 LGJ-300 25 100 63 16 400 6.8
TLS-400/400 LGJ-400 28 100 63 16 400 6.9
TLS-400N/400 NAHLGJQ-400 29 125 125 20 400 7.7
TLS-500/400 LGJ-500 31 100 80 18 400 7.1

TLS-630/400 LGJ-630 35 100 100 18 400 7.3
TLS-800/400 LGJ-800 39 125 125 20 400 7.5
TLS-600K/400 LGKK-600 52 125 125 20 400 7.2
TLS-900K/400 LGKK-900 50 125 125 20 400 7.3
TLS-1400/400 LGJQT-1400 52 125 125 20 400 7.2
TLS-1440N/400 NAHLGJQ-1440 52 150 150 24 400 7.5
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium， the other parts are steel and hot-dip galvanized.
