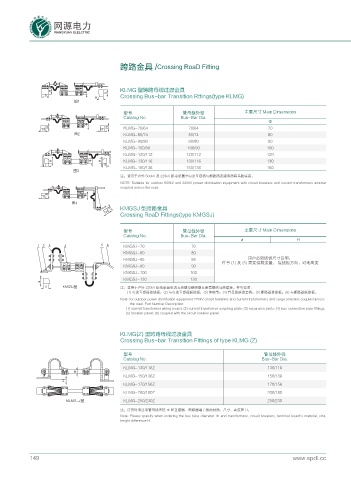

跨路金具 /Crossing RoaD Fitting

* µ KLMG 型跨路母线过渡金具
C C Crossing Bus-bar Transition Rttings(type KLMG)
*
ݓ
型号 管母线外径 主要尺寸 Main Dimensions
Catalog No. Bus-Bar Dia.
Φ
µ
C C KLMG-70/64 70/64 70
* *
ݓ KLMG-80/74 80/74 80
KLMG-90/80 90/80 90
KLMG-100/90 100/90 100
KLMG-120/112 120/112 120
* µ * KLMG-130/116 130/116 130
C C
KLMG-150/136 150/136 150
ݓ
注：适用于户外 500kV 及 220kV 配电装置中电流互感器与断路器及避雷器跨马路联接。
NOTE: Suitable for outdoor 500kV and 220kV power distribution equipment with circuit breakers and current transformers arrester
coupled across the road.
C
* µ
ݓ
KMGSJ 型跨路金具
C
*
Crossing RoaD Fittings(type KMGSJ)
型号 管母线外径 主要尺寸 Main Dimensions
Catalog No. Bus-Bar Dia.
a H
KMGSJ-70 70
KMGSJ-80 80
KMGSJ-85 85 用户必须提供尺寸说明：
件号 (1) 及 (5) 需提供载流量， 接线板方向，对地高度
KMGSJ-90 90
KMGSJ-100 100
KMGSJ-130 130
C
* -/)5,ތ 注：适用于户外 220kV 配电装置电流互感器与断路器及避雷器跨马路联接。件号说明：
(1) 电流互感器接线板；(2) 与电流互感器联接板；(3) 伸缩节；(4) 管母线联接金具；(5) 断路器接线板；(6) 与断路器联接板。
Note: for outdoor power distribution equipment 220kV circuit breakers and current transformers and surge arresters coupled across
the road. Part Number Description:
(1) current transformer wiring board; (2) current transformer coupling plate; (3) expansion joints; (4) bus connection pipe fittings;
(5) breaker panel; (6) coupled with the circuit breaker panel.

KLMG(Z) 型跨路母线过渡金具
Crossing Bus-bar Transition Fittings of type KLMG (Z)

型号 管母线外径
Catalog No. Bus-Bar Dia.
KLMG-130/116Z 130/116

KLMG-150/136Z 150/136
*
KLMG-170/156Z 170/156
KLMG-200/180Z 200/180
/./) <ތ KLMG-250/230Z 250/230
注：订货时请注明管母线直径 Φ 和互感器、断路器端子板的材质、尺寸、高度差 H。
Note: Please specify when ordering the bus tube diameter Φ and transformers, circuit breakers, terminal board's material, size,
height difference H.
