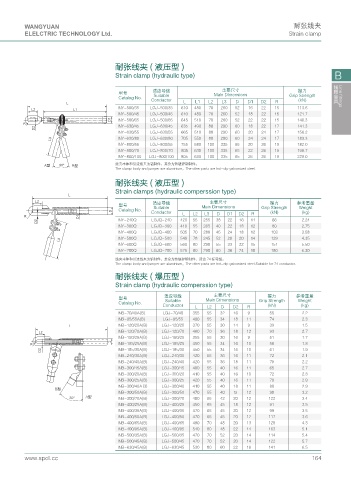

WANGYUAN 耐张线夹
ELELCTRIC TECHNOLOGY Ltd. Strain clamp

耐张线夹 ( 液压型 )

Strain clamp (hydraulic type) B

适应导线 主要尺寸 握力
型号 Suitable Main Dimensions Grip Strength
Catalog No. 线路金具 Line fittings
. Conductor L L1 L2 L3 D D1 D2 R (kN)
NY-500/35 LGJ-500/35 610 480 70 260 52 16 22 15 113.6
. .
NY-500/45 LGJ-500/45 610 480 70 260 52 18 22 15 121.7
& NY-500/65 LGJ-500/65 645 510 70 260 52 22 22 15 146.3
4 NY-630/45 LGJ-630/45 635 490 80 290 60 18 22 17 141.3
&
NY-630/55 LGJ-630/55 665 510 80 290 60 20 24 17 156.2
. NY-630/80 LGJ-630/80 705 550 80 290 60 24 24 17 183.3
NY-800/55 LGJ-800/55 755 580 100 335 65 20 26 19 182.0
NY-800/70 LGJ-800/70 805 630 100 335 65 22 26 19 196.7
NY-800/100 LGJ-800/100 805 630 100 335 65 26 26 19 229.0
#ތ d $ތ 线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
耐张线夹 ( 液压型 )
Strain clamps (hydraulic comperssion type)
.
. 适应导线 主要尺寸 握力 参考重量
型号 Suitable Main Dimensions Grip Strength Weight
Catalog No.
& Conductor (kN) (kg)
4 & L L2 L3 D D1 D2 R
& NY-240Q LGJQ-240 420 55 255 38 22 16 11 66 2.24
NY-300Q LGJQ-300 410 55 265 40 22 18 12 80 2.75
NY-400Q LGJQ-400 505 70 280 45 24 18 12 103 3.58
. NY-500Q LGJQ-500 540 78 245 52 28 20 14 129 4.35
NY-600Q LGJQ-600 560 80 290 55 33 22 15 151 5.50
NY-700Q LGJQ-700 575 80 290 60 36 24 18 180 6.30
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件，适合 74 标导线。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.Suitable for 74 conductor.
耐张线夹 ( 爆压型 )
Strain clamp (hydraulic comperssion type)

适应导线 主要尺寸 握力 参考重量
型号 Suitable Main Dimensions Grip Strength Weight
Catalog No.
Conductor L L2 D D2 R (kN) (kg)
NB-70/40A(B) LGJ-70/40 355 55 32 16 9 55 2.2
NB-95/55A(B) LGJ-95/55 400 55 34 18 11 74 2.3
. NB-120/20A(B) LGJ-120/20 370 55 30 14 9 39 1.5
. NB-120/70A(B) LGJ-120/70 460 70 36 18 12 93 2.7
NB-150/25A(B) LGJ-150/25 355 55 30 16 9 51 1.7
&
4 NB-185/25A(B) LGJ-185/25 450 55 34 16 10 56 1.8
& NB-185/30A(B) LGJ-185/30 450 55 34 16 10 61 1.9
NB-240/30A(B) LGJ-240/30 420 55 36 16 11 72 2.1
NB-240/40A(B) LGJ-240/40 420 55 36 18 11 79 2.2
NB-300/15A(B) LGJ-300/15 400 55 40 16 11 65 2.7
NB-300/20A(B) LGJ-300/20 410 55 40 16 10 72 2.8
NB-300/25A(B) LGJ-300/25 420 55 40 16 11 79 2.9
NB-300/40A ⑶ LGJ-300/40 410 55 40 18 11 88 2.9
$ތ
NB-300/50A(B) LGJ-300/50 470 55 40 ts 12 98 3.2
d #ތ NB-300/70A(B) LGJ-300/70 480 65 42 20 12 122 3.4
NB-400/25A(B) LGJ-400/25 450 65 45 18 12 91 3.5
NB-400/35A(B) LGJ-400/35 470 65 45 20 12 99 3.5
NB-400/50A(B) LGJ-400/50 470 65 45 20 12 117 3.6
NB-400/65A(B) LGJ-400/65 490 70 48 20 13 128 4.3
NB-400/95A(B) LGJ-400/95 540 80 48 22 14 163 5.1
NB-500/35A(B) LGJ-500/35 470 70 52 20 14 114 5.4
NB-500/45A(B) LGJ-500/45 470 70 52 20 14 122 5.7
NB-630/45A(B) LGJ-630/45 530 80 60 22 16 141 6.5
