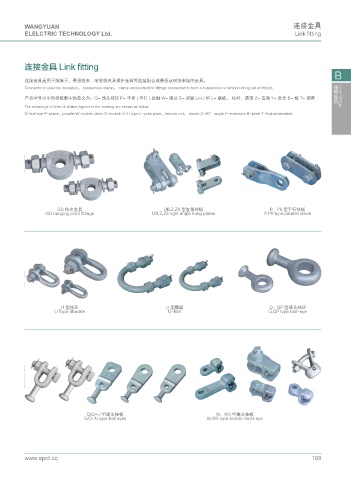

Page 190 - 网源电力科技有限公司

WANGYUAN 连接金具
ELELCTRIC TECHNOLOGY Ltd. Link fitting

连接金具 Link fitting
B
连接金具是用于绝缘子、悬垂线夹、耐张线夹及保护金具等连接组合成悬垂或耐张串组的金具。
Connector is used for insulators， suspension clamp， clamp and protection fittings connected to form a suspension or tension string set of fittings.

产品型号中字母挂板数字的意义为：Q- 球头挂环 P- 平面 ( 平行 ) 接触 W- 碗头 S- 双联 U-U 型 L- 联板、 拉杆、菱形 Z- 直角 Y- 延长 B- 板 T- 调整 线路金具 Line fittings
The meanings of letter & Arabic figures in the catalog are shown as follow.
Q-ball eye P-plane，parallel W-socket clevis S-double U-U type L-yoke plate，tension rod， rhomb Z-90° angle Y-extension B-plate T-Adjustmentable.

GD 挂点金具 UB,Z,ZS 型直角挂板 P、PS 型平行挂板
GD hanging point fittings UB,Z,ZS right angle hung plates P,PS type parallel clevis

U 型挂环 U 型螺丝 Q、QP 型球头挂环
U Type Shackle U-Bolt Q,QP type ball-eye

Q/Q-U 型球头挂板 W、WS 型碗头挂板
Q/Q-U type ball eyes W,WS type socket clevis eye
