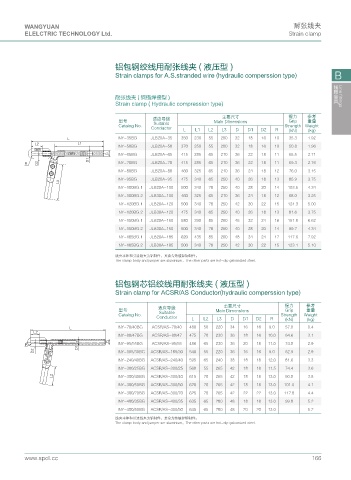

WANGYUAN 耐张线夹
ELELCTRIC TECHNOLOGY Ltd. Strain clamp

铝包钢绞线用耐张线夹 ( 液压型 )

Strain clamps for A.S.stranded wire (hydraulic comperssion type) B

耐张线夹 ( 钢锚焊接型 ) 线路金具 Line fittings
Strain clamp ( Hydraulic compression type)

适应导线 主要尺寸 握力 参考
型号 Suitable Main Dimensions Grip 重量
Catalog No. Strength Weight
Conductor L L1 L2 L3 D D1 D2 R (kN) (kg)
. NY-35BG JLB20A-35 350 230 55 200 32 18 16 10 35.3 1.92
. .
NY-50BG JLB20A-50 370 250 55 200 32 18 16 10 50.8 1.96
ףഗ׽ތ؜
ףഗ׽ތ؜ & NY-65BG JLB20A-65 415 285 65 210 36 22 18 11 65.5 2.71
&
4 & NY-70BG JLB20A-70 415 285 65 210 36 22 18 11 69.3 2.76
NY-80BG JLB20A-80 460 325 65 210 36 24 18 12 76.0 3.15
NY-95BG JLB20A-95 475 340 65 250 40 26 18 13 85.9 3.75
.
NY-100BG.1 JLB20A-100 500 340 78 250 40 28 20 14 103.5 4.34
NY-100BG.2 JLB30A-100 460 325 65 210 36 24 18 12 68.0 3.25
NY-120BG.1 JLB20A-120 500 340 78 250 42 30 22 15 124.3 5.00
NY-120BG.2 JLB30A-120 475 340 65 250 40 26 18 13 81.6 3.75
NY-150BG.1 JLB20A-150 580 390 85 260 45 32 24 16 151.8 6.62
NY-150BG.2 JLB30A-150 500 340 78 250 40 28 20 14 99.7 4.34
NY-185BG.1 JLB20A-185 620 435 85 260 48 34 24 17 117.6 7.92
NY-185BG.2 JLB30A-185 500 340 78 250 42 30 22 15 123.1 5.10
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.

铝包钢芯铝绞线用耐张线夹 ( 液压型 )
Strain clamp for ACSR/AS Conductor(hydraulic comperssion type)

适应导线 主要尺寸 握力 参考
型号 Suitable Main Dimensions Grip 重量
Catalog No. Strength Weight
Conductor L L2 L3 D D1 D2 R (kN) (kg)
. NY-70/40BG ACSR/AS-70/40 480 50 220 34 16 16 9.0 57.8 0.4
.
NY-80/47BG ACSR/AS-80/47 475 70 230 36 18 16 10.0 64.6 3.1
&
4 & NY-95/55BG ACSR/AS-95/55 486 65 230 36 20 18 11.0 74.0 2.9
& NY-185/30BG ACSR/AS-185/30 540 55 220 36 16 16 9.0 62.9 2.9
NY-240/40BG ACSR/AS-240/40 595 65 240 38 18 18 12.0 81.6 3.3
NY-300/25BG ACSR/AS-300/25 560 55 265 42 18 18 11.5 74.4 3.6
. NY-300/40BG ACSR/AS-300/40 615 70 265 42 18 18 13.0 90.0 3.8
NY-300/50BG ACSR/AS-300/50 620 70 265 42 18 18 13.0 101.0 4.1
NY-300/70BG ACSR/AS-300/70 625 70 265 42 22 22 13.0 117.8 4.4
NY-400/35BG ACSR/AS-400/35 635 65 280 48 18 18 13.0 99.0 5.2
NY-400/50BG ACSR/AS-400/50 645 65 280 48 20 20 13.0 5.2
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
