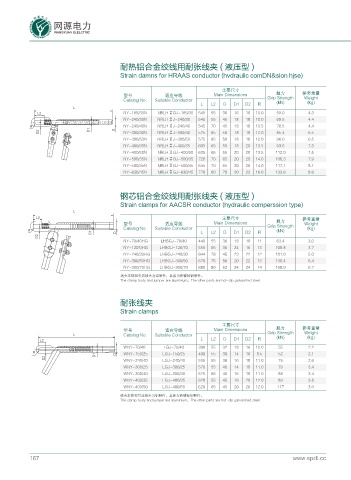

P. 189
耐热铝合金绞线用耐张线夹 ( 液压型 )
Strain damns for HRAAS conductor (hvdraulic comDN&sion hjse)
主要尺寸
握力
型号 适应导线 Main Dimensions Grip Strength 参考重量
Weight
Catalog No. Suitable Conductor
L L2 D D1 D2 R (kN) (kg)
.
58
. NY-185/30N NRLH GJ-185/30 545 55 36 16 16 10.0 59.0 4.3
60
NY-240/30N NRLH J-240/30 545 55 45 18 18 10.0 69.5 4.4
58
60
58
4 NY-240/40N NRLH J-240/40 545 70 45 18 18 10.5 76.5 4.4
60
& & & NY-300/40N NRLH J-300/40 575 65 50 18 18 12.0 85.4 6.5
58
60
NY-300/50N NRLH J-300/50 575 65 50 18 18 12.0 96.0 6.5
58
60
58
NY-400/35N NRLH J-400/35 605 65 55 18 20 13.5 93.6 7.3
60
58
NY-400/50N NRLH GJ-400/50 635 65 55 20 20 13.5 112.0 7.5
60
NY-500/35N NRLH GJ-500/35 728 70 65 20 20 14.0 108.3 7.9
58
60
58
NY-500/45N NRLH GJ-500/45 645 70 65 20 20 14.0 117.1 8.1
60
58
NY-630/45N NRLH GJ-630/45 770 80 70 20 22 16.0 133.6 8.6
60
钢芯铝合金绞线用耐张线夹 ( 液压型 )
Strain clamps for AACSR conductor (hydraulic comperssion type)
.
. 主要尺寸 参考重量
握力
型号 适应导线 Main Dimensions Grip Strength Weight
Catalog No. Suitable Conductor (kg)
4 & & L L2 D D1 D2 R (kN)
&
NY-70/40HG LHBGJ-70/40 440 55 36 18 16 11 63.4 3.0
NY-120"0HG LHBGJ-120/70 555 55 36 24 16 13 108.8 3.7
NY-240/30HG LHBGJ-240/30 644 78 45 23 22 12 101.0 5.0
NY-300/50HG LHBGJ-300/50 670 75 50 20 22 13 136.4 6.4
NY-300/70HG LHBGJ-300/70 680 80 52 24 24 14 168.0 6.7
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
耐张线夹
Strain clamps
主要尺寸
型号 适应导线 Main Dimensions 握力 参考重量
. Catalog No. Suitable Conductor Grip Strength Weight
. L L2 D D1 D2 R (kN) (kg)
WNY-70/40 LGJ-70/40 390 55 32 18 16 10.0 55 2.2
4 & & WNY-150/25 LGJ-150/25 400 55 30 14 16 8.5 52 2.1
& WNY-240/40 LGJ-240/40 515 55 36 16 18 11.0 79 2.6
WNY-300/25 LGJ-300/25 570 55 40 14 18 11.0 79 3.4
WNY-300/40 LGJ-300/40 575 55 40 16 18 11.0 88 3.4
WNY-400/35 LGJ-400/35 620 55 45 16 20 12.0 89 3.8
WNY-400/50 LGJ-400/50 620 65 45 20 20 12.0 117 3.9
线夹本体和引流线夹为铝制件，其余为热镀锌钢制件。
The clamp body and jumper are aluminium，The other parts are hot-dip galvanized steel.
