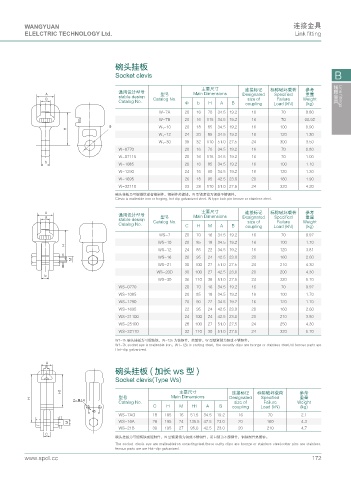

WANGYUAN 连接金具
ELELCTRIC TECHNOLOGY Ltd. Link fitting

碗头挂板

Socket clevis B

主要尺寸 连接标记 标称破坏载荷 参考
通用设计型号
# 型号 Main Dimensions Designated Specified 重量 线路金具 Line fittings
$ stable desiqn Catalog No. size of Failure Weight
Catalog No. Φ b H A B coupling Load (kN) (kg)
W-7A 20 16 70 34.5 19.2 16 70 0.80
W-7B 20 16 115 34.5 19.2 16 70 00.92
 W 1 -10 20 18 85 34.5 19.2 16 100 0.90
*
W 1 -12 24 20 85 34.5 19.2 16 120 1.30
W 1 -30 39 32 110 51.0 27.5 24 300 3.50
W-0770 20 16 70 34.5 19.2 16 70 0.80
W-07115 20 16 115 34.5 19.2 16 70 1.00
D W-1085 20 16 85 34.5 19.2 16 100 1.10
W-1290 24 16 90 34.5 19.2 16 120 1.30
W-1695 26 18 95 42.5 23.0 20 160 1.90
W-32110 33 28 110 51.0 27.5 24 320 4.20
碗头挂板为可锻铸铁或者锻制件，钢制件热镀锌。W 型锁紧销为钢或不锈钢件。
Clevis is malleable iron or forging, hot dip galvanized steel. W type lock pin bronze or stainless steel.

# 通用设计型号 主要尺寸 连接标记 标称破坏载荷 参考
$ 型号 Main Dimensions Designated Specified 重量
stable desiqn Catalog No. size of Failure Weight
Catalog No. C H M A B coupling Load (kN) (kg)
WS-7 20 70 16 34.5 19.2 16 70 0.97
WS-10 20 85 18 34.5 19.2 16 100 1.70
*
WS-12 24 85 22 34.5 19.2 16 120 3.81
WS-16 26 95 24 42.5 23.0 20 160 2.60
/
WS-21 30 100 27 51.0 27.5 24 210 4.30
WS-20D 30 100 27 42.5 23.0 20 200 4.30
D
WS-30 36 110 36 51.0 27.5 24 320 5.70
WS-0770 20 70 16 34.5 19.2 16 70 0.97
WS-1085 20 85 18 34.5 19.2 16 100 1.70
WS-1290 20 90 22 34.5 19.2 16 120 1.70
WS-1695 22 95 24 42.5 23.0 20 160 2.60
WS-21100 24 100 24 42.5 23.0 20 210 3.80
WS-25100 28 100 27 51.0 27.5 24 250 4.30
WS-32110 32 110 30 51.0 27.5 24 320 5.70
W1-7k 碗头挂板为可锻铸铁，W-12k 为铸钢件，热镀锌。W 型锁紧销为钢或不锈钢件。
W1-7k socket eye is malleable iron，W1-12k is casting steel，the security clips are bronze or stainless steel.AII ferrous parts are
Hot-dip galvanized.

#
$
碗头挂板 ( 加长 ws 型 )
Socket clevis(Type Ws)

* 主要尺寸 连接标记 标称破坏载荷 参考
型号 Main Dimensions Designated Specified 重量
*

Catalog No. size of Failure Weight
C H M H1 A B coupling Load (kN) (kg)

WS-7AG 18 105 16 51.5 34.5 19.2 16 70 2.1
/ WS-16A 26 195 24 135.5 42.5 23.0 20 160 4.3
WS-21B 30 195 27 95.0 42.5 23.0 20 210 4.7
%
碗头挂板为可锻铸铁或锻制件，W 型锁紧销为钢或不锈钢件，闭口销为不绣纲件，钢铁制件热镀锌。
The socket-clevis eye are malleableiron orcastingsteel.these curity clips are bronze or stainless steel.cotter pins are stainless.
ferrous parts are are Hot-dip galvanized.
