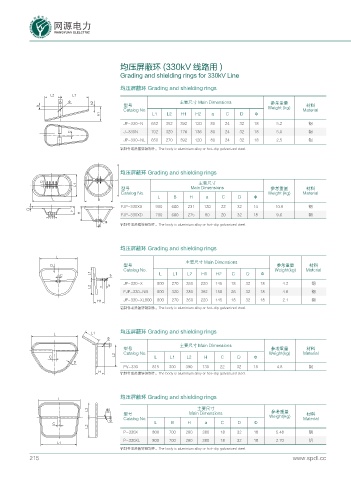

均压屏蔽环 (330kV 线路用 )

Grading and shielding rings for 330kV Line
均压屏蔽环 Grading and shielding rings
. .
 J 主要尺寸 Main Dimensions 参考重量
C 型号 Weight (kg) 材料
Catalog No. Material
J L1 L2 H1 H2 a C D Φ
JP-330-N 652 352 392 120 80 24 32 18 5.2 钢
% J-330N 702 320 176 136 80 24 32 18 5.0 钢
JP-330-NL 650 270 392 120 80 24 32 18 2.5 铝
铝制件或热镀锌钢制件。The body is aluminium alloy or hot-dip galvanized steel.

均压屏蔽环 Grading and shielding rings
.
% 主要尺寸
.
型号 Main Dimensions 参考重量 材料
Catalog No. Weight (kg) Material
L B H a C D Φ
. $
FJP-330XS 900 600 231 120 22 32 14 10.6 钢
& J
*
C C C FJP-330XD 700 600 275 80 20 32 18 9.6 钢

C 铝制件或热锻梓钢制件。The body is aluminium alloy or hot-dip galvanized steel.

均压屏蔽环 Grading and shielding rings
.
主要尺寸 Main Dimensions
& 型号 参考重量 材料
Catalog No. Weight(kg) Material
. L L1 L2 H1 H2 C D Φ
% C
JP-330-X 800 270 350 220 145 18 32 18 4.2 钢
C
.
FJP-330-NB 800 320 380 392 150 26 32 18 4.8 钢
* JP-330-XL800 800 270 350 220 145 18 32 18 2.1 钢
铝制件或热镀锌钢制件。The body is aluminium alloy or hot-dip galvanized steel.

. . 均压屏蔽环 Grading and shielding rings

主要尺寸 Main Dimensions
型号 参考重量 材料
Catalog No. Weight(kg) Material
% . L L1 L2 H C D Φ
&
PV-330 815 300 390 130 22 32 18 4.8 钢
* 铝制件或热镀锌钢制件。The body is aluminium alloy or hot-dip galvanized steel.

均压屏蔽环 Grading and shielding rings
.
. 主要尺寸 参考重量
型号 Main Dimensions Weight(kg) 材料
Catalog No. Material

% L B H a C D Φ
.
P-330X 800 700 280 380 18 32 18 5.48 钢
P-330XL 800 700 280 380 18 32 18 2.70 铝
.
铝制件或热镀锌钢制件。The body is aluminium alloy or hot-dip galvanized steel.
