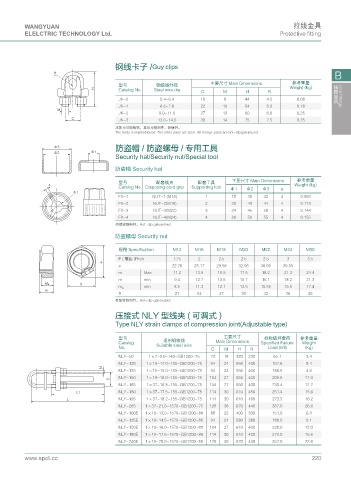

WANGYUAN 拉线金具
ELELCTRIC TECHNOLOGY Ltd. Protective fitting

钢线卡子 /Guy clips
B
4
型号 钢绞线外径 主要尺寸 Main Dimensions 参考重量
* Catalog No. Steel wire dia C M H R Weight (kg)
JK-0 5.4~6.4 18 8 44 4.5 0.08 线路金具 Line fittings
JK-1 6.6~7.8 22 10 54 5.0 0.18
/
JK-2 9.0-11.0 27 12 60 6.0 0.25
% JK-3 13.0-14.0 30 14 75 7.5 0.35
本体为可锻铸铁，其余为钢制件，热镀锌。
The body is malleableiron. The other parts are steel. All ferrous parts are hot-dipgalvanized.

 防盗帽 / 防盗螺母 / 专用工具
 
Security hat/Security nut/Special tool

防盗帽 Security hat
主要尺寸 Main Dimensions 参考重量
型号 配套线夹 配套工具
C Weight (kg)
Catalog No. Disposing cord grip Supporting tool Φ1 Φ2 Φ3 a

FX-1 NUT-1 (M16) 1 18 38 42 4 0.093
FX-2 NUT-2(M18) 2 20 40 44 4 0.113
FX-3 NUT-3(M22) 3 24 45 50 4 0.144
FX-4 NUT-4(M24) 4 26 50 55 4 0.155
热镀锌钢制件。Hot-dip galvanized.
防盗螺母 Security nut

规格 Specification M12 M16 M18 M20 M22 M24 M30
P ( 螺距 )Pitch 1.75 2 2.5 2.5 2.5 3 3.5
G
e 22.78 26.17 29.56 32.95 36.95 39.55
m Max 11.2 13.9 15.9 17.5 18.2 21.3 24.4
m min 9.4 12.7 13.5 15.7 16.1 18.2 21.3
5
/Y
m w min 8.5 11.3 12.1 13.5 15.55 15.5 17.4
O
S 21 24 27 30 32 36 46
热镀锌钢制件。Hot-dip galvanized.
压接式 NLY 型线夹 ( 可调式 )
Type NLY strain clamps of compression joint(Adjustable type)

型号 适用钢绞线 主要尺寸 标称破坏载荷 参考重量
Catalog Suitable steel wire Main Dimensions Specified Failure Weight
No. C M H R Load (kN) (kg)
NLY-50 1×7-9.0-140-GB1200-75 72 18 320 230 65.1 3.4
NLY-120 1×19-14.0-155-GB1200-75 94 24 556 400 167.6 8.4
/
NLY-135 1×19-15.0-155-GB1200-75 94 24 556 400 188.5 4.9
NLY-150 1×19-16.0-155-GB1200-75 104 27 556 400 209.5 11.0
%
NLY-165 1×37-16.8-155-GB1200-75 104 27 556 400 230.4 12.2
. NLY-180 1×37-17.5-155-GB1200-75 114 30 610 450 251.4 15.6
. NLY-195 1×37-18.2-155-GB1200-75 114 30 610 460 273.3 16.2
NLY-265 1×37-21.0-1570-GB1200-75 128 36 670 440 367.0 26.6
NLY-100E 1×19-13.0-1570-GB1200-88 88 22 490 300 151.0 6.3
NLY-125E 1×19-14.5-1570-GB1200-88 94 24 580 380 188.0 9.1
NLY-150E 1×19-16.0-1570-GB1200-88 104 27 610 400 228.0 12.0
NLY-180E 1×19-17.5-1570-GB1200-88 114 30 610 420 273.0 15.6
NLY-240E 1×19-20.0-1570-GB1200-88 128 36 670 440 357.0 22.6

www.spdl.cc 220
