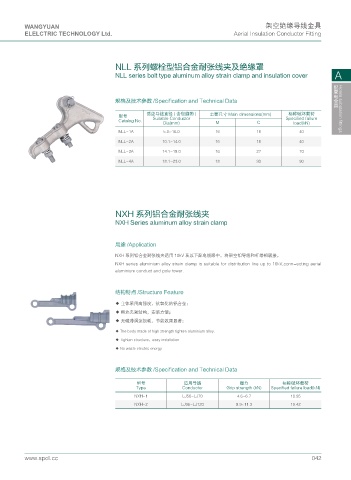

WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

NLL 系列螺栓型铝合金耐张线夹及绝缘罩

NLL series bolt type aluminum alloy strain clamp and insulation cover A

规格及技术参数 /Specification and Technical Data

适应导线直径 ( 含包缠物 ) 主要尺寸 Main dimensions(mm) 标称破坏载荷 配变电金具 Hotels substation fittings
型号 Suitable Conductor Specified failure
Catalog No.
Dia(mm) M C load(kN)
NLL-1A 5.0~10.0 16 18 40
NLL-2A 10.1~14.0 16 18 40
NLL-3A 14.1~18.0 16 27 70
NLL-4A 18.1~23.0 18 30 90

NXH 系列铝合金耐张线夹
NXH Series aluminum alloy strain clamp

用途 /Application
NXH 系列铝合金耐张线夹适用 10kV 及以下配电线路中，将架空铝导线和杆塔相联接。
NXH series aluminium alloy strain clamp is suitable for distribution line up to 10kV,conn-ecting aerial
aluminium conduct and pole tower.

结构特点 /Structure Feature

◆ 主体采用高强度、抗氧化的铝合金；
◆ 楔块夹紧结构，安装方便；
◆ 无磁滞涡流损耗，节能效果显著；

◆ The body made of high strength tighten aluminium alloy.
◆ Tighten structure，easy installation
◆ No waste electric energy

规格及技术参数 /Specification and Technical Data

型号 适用导线 握力 标称破坏载荷
Type Conductor Grip strength (kN) Specified failure load(kN)
NXH-1 LJ50-LJ70 4.6~6.7 10.95
NXH-2 LJ95-LJ120 8.9~11.3 19.42

www.spdl.cc 042
