WANGYUAN 架空绝缘导线金具
ELELCTRIC TECHNOLOGY Ltd. Aerial Insulation Conductor Fitting

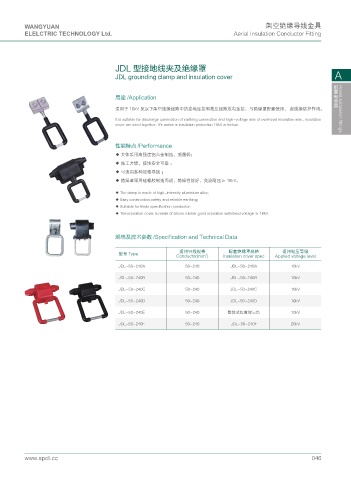

JDL 型接地线夹及绝缘罩
JDL grounding clamp and insulation cover A

用途 /Application

适用于 10kV 及以下架空绝缘线路中的接地连接和高压线路放电连接，与绝缘罩配套使用， 起绝缘防护作用。 配变电金具 Hotels substation fittings
It is suitable for discharge connection of earthing connection and high-voltage wire of overhead insulation wire，insulation
cover are used together. It's action is insulation protection 10kV or below.

性能特点 /Performance
◆ 夹体采用高强度铝合金制造，质量轻；
◆ 施工方便，接地安全可靠 ；
◆ 可适用多种规格导线 ；
◆ 绝缘罩采用硅橡胶制造而成，绝缘性能好，交流耐压≥ 18kV。

◆ The damp is made of high-intensity aluminium alloy;
◆ Easy construction,safety and reliable earthing;
◆ Suitable for kinds specification conductor;
◆ The insulation cover is made of silicon rubber.good insulation withstand voltage ≥ 18kV.

规格及技术参数 /Specification and Technical Data

适用导线规格 配套绝缘罩规格 适用电压等级
型号 Type 2
Conductor(mm ) Insulation cover spec Applied voltage level
JDL-50~240A 50~240 JDL-50~240A 10kV
JDL-50~240B 50~240 JDL-50~240B 10kV

JDL-50~240C 50~240 JDL-50~240C 10kV
JDL-50~240D 50~240 JDL-50~240D 10kV

JDL-50~240E 50~240 整体式红黄绿三色 10kV
JDL-50~240F 50~240 JDL-50~240F 20kV

www.spdl.cc 046
