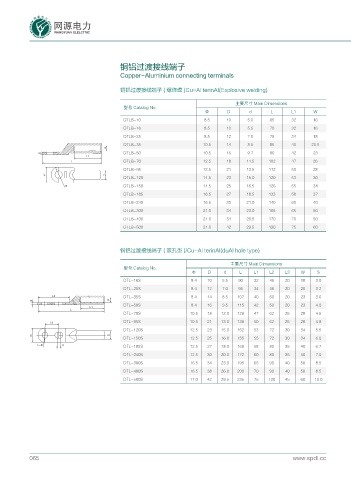

铜铝过渡接线端子

Copper-Aluminium connecting terminals

铜铝过渡接线端子 ( 爆炸焊 )Cu-Al terinAl(Explosive welding)

主要尺寸 Main Dimensions
型号 Catalog No.
Φ D d L L1 W
DTLB-10 8.5 10 5.0 65 32 16
DTLB-16 8.5 10 5.5 70 32 16
DTLB-25 8.5 12 7.0 75 34 18
DTLB-35 10.5 14 8.5 85 40 20.5
F
5 DTLB-50 10.5 16 9.7 90 42 23
.
. DTLB-70 12.5 18 11.5 102 47 26
DTLB-95 12.5 21 13.5 112 50 28
9 &
DTLB-120 14.5 23 15.0 120 53 30
 DTLB-150 14.5 25 16.5 126 55 34
DTLB-185 16.5 27 18.5 133 58 37
DTLB-240 16.5 30 21.0 140 60 40
DTLB-300 21.0 34 23.0 165 65 50
DTLB-400 21.0 34 26.5 170 70 50
DTLB-500 21.0 42 29.5 190 75 60

铜铝过渡接线端子 ( 双孔型 )/Cu-Al terinAl(duAl hole type)

主要尺寸 Main Dimensions
型号 Catalog No.
Φ D d L L1 L2 L3 W S
DTL-16S 8.4 10 5.5 90 32 45 20 18 3.0
DTL-25S 8.4 12 7.0 95 34 45 20 20 3.2
. DTL-35S 8.4 14 8.5 107 40 50 20 23 3.6
5 F
DTL-50S 8.4 16 9.5 115 42 50 20 23 4.0
.
.
DTL-70S 10.5 18 12.0 128 47 62 25 28 4.5
. DTL-95S 10.5 21 13.0 138 50 62 25 28 4.8
DTL-120S 12.5 23 15.0 152 53 72 30 34 5.5
9 &
DTL-150S 12.5 25 16.0 155 55 72 30 34 6.0
 DTL-185S 12.5 27 18.0 168 58 80 35 40 6.7
DTL-240S 12.5 30 20.0 172 60 80 35 40 7.0
DTL-300S 16.5 34 23.0 195 65 90 40 50 8.5
DTL-400S 16.5 38 26.0 200 70 90 40 50 8.5
DTL-500S 17.0 42 29.5 235 75 120 45 60 10.0

065 www.spdl.cc
