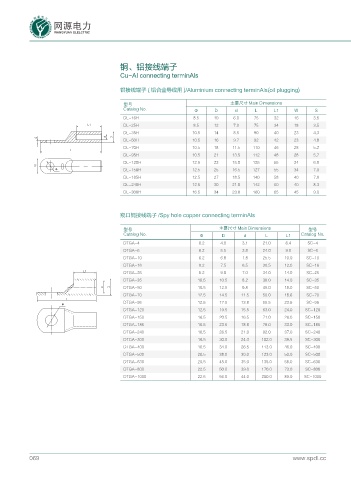

铜、铝接线端子

Cu-AI connecting terminAls

铝接线端子 ( 铝合金导线用 )/Aluminium connecting terminAls(oil plugging)

型号 主要尺寸 Main Dimensions
Catalog No. Φ D d L L1 W S
DL-16H 8.5 10 6.0 75 32 16 3.5
. DL-25H 8.5 12 7.0 75 34 18 3.5
DL-35H 10.5 14 8.5 90 40 23 4.3
5 F &
DL-50H 10.5 16 9.7 92 42 23 4.8
DL-70H 10.5 18 11.5 110 46 28 5.2
.
DL-95H 10.5 21 13.5 112 48 28 5.7
DL-120H 12.5 23 15.0 125 55 34 6.8
9
 DL-150H 12.5 25 16.5 127 55 34 7.0
DL-185H 12.5 27 18.5 140 58 40 7.8
DL-240H 12.5 30 21.0 142 60 40 8.3
DL-300H 16.5 34 23.0 160 65 45 9.0

窥口铜接线端子 /Spy hole copper connecting terminAls

型号 主要尺寸 Main Dimensions 型号
Catalog No. Φ D d L L1 Catalog No.
DTGA-4 6.2 4.8 3.1 21.0 6.4 SC-4
DTGA-6 6.2 5.5 3.8 24.0 9.0 SC-6
DTGA-10 6.2 6.8 1.8 25.5 10.0 SC-10
DTGA-16 8.2 7.5 6.5 30.5 12.0 SC-16
. DTGA-25 8.2 9.0 7.0 34.0 14.0 SC-25
DTGA-35 10.5 10.5 8.2 38.0 14.0 SC-35
F & DTGA-50 10.5 12.5 9.8 45.0 18.0 SC-50
DTGA-70 12.5 14.5 11.5 50.0 18.6 SC-70
.
 DTGA-95 12.5 17.5 13.8 55.5 23.5 SC-95
DTGA-120 12.5 19.5 15.5 63.0 24.0 SC-120
DTGA-150 16.5 20.5 16.5 71.0 26.0 SC-150
DTGA-185 16.5 23.5 18.8 78.0 33.0 SC-185
DTGA-240 16.5 26.5 21.0 92.0 37.0 SC-240
DTGA-300 16.5 30.0 24.0 102.0 39.5 SC-300
DTGA-400 16.5 34.0 26.5 113.0 46.0 SC-400
DTGA-500 20.5 38.0 30.0 123.0 50.0 SC-500
DTGA-630 20.5 45.0 35.0 135.0 58.0 SC-630
DTGA-800 22.5 50.0 39.0 170.0 73.0 SC-800
DTGA-1000 22.5 56.0 44.0 200.0 89.0 SC-1000
