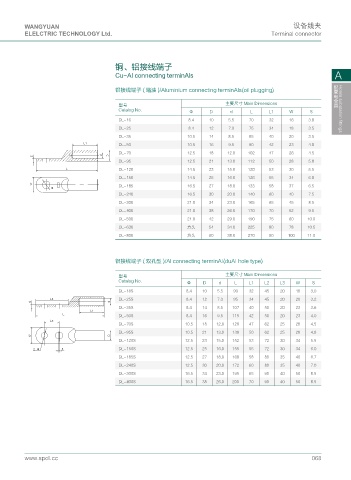

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector

铜、铝接线端子

Cu-AI connecting terminAls A

铝接线端子 ( 堵油 )/Aluminium connecting terminAls(oil plugging)

型号 主要尺寸 Main Dimensions
Catalog No. 配变电金具 Hotels substation fittings
Φ D d L L1 W S
DL-16 8.4 10 5.5 70 32 16 3.0
DL-25 8.4 12 7.0 75 34 18 3.5
DL-35 10.5 14 8.5 85 40 20 3.5
. DL-50 10.5 16 9.5 90 42 23 4.0
DL-70 12.5 18 12.0 102 47 26 4.5
5 F &
DL-95 12.5 21 13.0 112 50 28 5.0
. DL-120 14.5 23 15.0 120 53 30 5.5
DL-150 14.5 25 16.0 126 55 34 6.0
9 DL-185 16.5 27 18.0 133 58 37 6.5

DL-240 16.5 30 20.0 140 60 40 7.5
DL-300 21.0 34 23.0 165 65 45 8.5
DL-400 21.0 38 26.0 170 70 52 9.5
DL-500 21.0 42 29.0 190 75 60 10.0
DL-630 方头 54 34.0 225 80 78 10.5
DL-800 方头 60 38.0 270 90 100 11.0

铝接线端子 ( 双孔型 )/Al connecting terminAI(duAI hole type)

型号 主要尺寸 Main Dimensions
Catalog No.
Φ D d L L1 L2 L3 W S
DL-16S 8.4 10 5.5 90 32 45 20 18 3.0
. DL-25S 8.4 12 7.0 95 34 45 20 20 3.2
5 F
DL-35S 8.4 14 8.5 107 40 50 20 23 3.6
.
. DL-50S 8.4 16 9.5 115 42 50 20 23 4.0
.
DL-70S 10.5 18 12.0 128 47 62 25 28 4.5
DL-95S 10.5 21 13.0 138 50 62 25 28 4.8
9 &
DL-120S 12.5 23 15.0 152 53 72 30 34 5.5
 DL-150S 12.5 25 16.0 155 55 72 30 34 6.0
DL-185S 12.5 27 18.0 168 58 80 35 40 6.7
DL-240S 12.5 30 20.0 172 60 80 35 40 7.0
DL-300S 16.5 34 23.0 195 65 90 40 50 8.5
DL-400S 16.5 38 26.0 200 70 90 40 50 8.5
