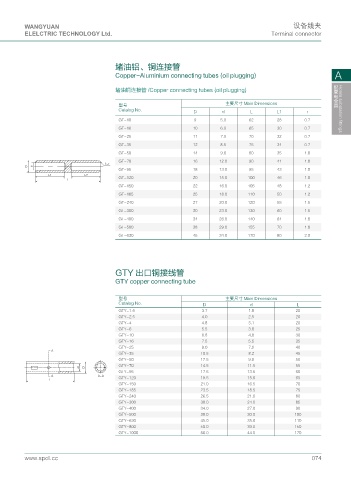

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector
堵油铝、铜连接管
Copper-Aluminium connecting tubes (oil plugging) A
堵油铜连接管 /Copper connecting tubes (oil plugging)
型号 主要尺寸 Main Dimensions
Catalog No. 配变电金具 Hotels substation fittings
D d L L1 r
GT-10 9 5.0 62 28 0.7
GT-16 10 6.0 65 30 0.7
GT-25 11 7.0 70 32 0.7
GT-35 12 8.5 75 34 0.7
GT-50 14 9.6 80 35 1.0
GT-70 16 12.0 90 41 1.0
T
& F
GT-95 18 13.0 95 43 1.0
. .
. GT-120 20 15.0 100 46 1.0
GT-150 22 16.0 105 48 1.2
GT-185 25 18.0 110 50 1.2
GT-240 27 20.0 120 55 1.5
GT-300 30 23.0 130 60 1.5
GT-400 34 26.0 140 64 1.8
GT-500 38 29.0 155 70 1.8
GT-630 45 34.0 170 80 2.0
GTY 出口铜接线管
GTY copper connecting tube
型号 主要尺寸 Main Dimensions
Catalog No. D d L
GTY-1.5 3.7 1.8 20
GTY-2.5 4.0 2.5 20
GTY-4 4.8 3.1 20
GTY-6 5.5 3.8 25
GTY-10 6.8 4.8 30
GTY-16 7.5 5.5 35
GTY-25 9.0 7.0 40
#
GTY-35 10.5 8.2 45
GTY-50 12.5 9.8 50
GTY-70 14.5 11.5 55
F &
GTY-95 17.5 13.5 60
# # #
. GTY-120 19.5 15.0 65
GTY-150 21.0 16.5 70
GTY-185 23.5 18.5 75
GTY-240 26.5 21.0 80
GTY-300 30.0 24.0 85
GTY-400 34.0 27.0 90
GTY-500 38.0 30.0 100
GTY-630 45.0 35.0 110
GTY-800 50.0 39.0 150
GTY-1000 56.0 44.0 170
