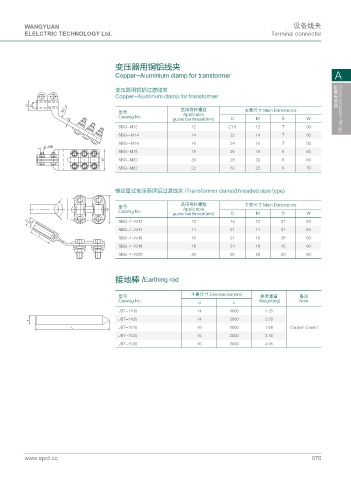

WANGYUAN                                                                                    设备线夹
          ELELCTRIC TECHNOLOGY Ltd.                                                           Terminal connector





                                         变压器用铜铝线夹

                                         Copper-Aluminium clamp for transtormer                                     A

                                         变压器用铜铝过渡线夹
                                         Copper-Aluminum clamp for transtormer
           &  /
                         d                型号                   适用导杆螺纹                主要尺寸 Main Dimensions            配变电金具 Hotels substation fittings
                                                                Applicable
                         5                Catalog No.       guide barthread(mm)  D       M        S        W
                                          SBG-M12                  12           21.5     12       7       50
                                          SBG—M14                  14           22       14       7       50
                                          SBG—M16                  16           24       16       7       50
                  /
                                          SBG-M18                  18           26       18       8       60
                                     9    SBG-M20                  20           28       20       8       60
                                          SBG-M22                  22           32       22       9       70


                                         螺纹管式变压器铜铝过渡线夹 /Transformer clamp(threaded pipe type)

                                                               适用导杆螺纹                主要尺寸 Main Dimensions
                                          型号
                                      9                         Applicable
                                          Catalog No.
                                                            guide barthread(mm)  D       M        S        W
          &                               SBG-1-M12                12           19       12       37      50
            /
                                          SBG-1-M14                14           21       14       37      50
               .
                                          SBG-1-M16                16           21       16       38      50
                                          SBG-1-M18                18           24       18       45      60
                                          SBG-1-M20                20           26       20       50      60



                                         接地棒 /Earthing rod


                                          型号                       主要尺寸 Dimensions(mm)     参考重量         备注
                                          Catalog No.                d           L         Weight(kg)   Note
                                          JBT-1410                   14         1000        1.25
                                          JBT-1420                   14         2000        2.50
           F
                          .               JBT-1610                   16         1000        1.68     Copper coated
                                          JBT-1620                   16         2000        3.36
                                          JBT-1630                   16         3000        4.95
