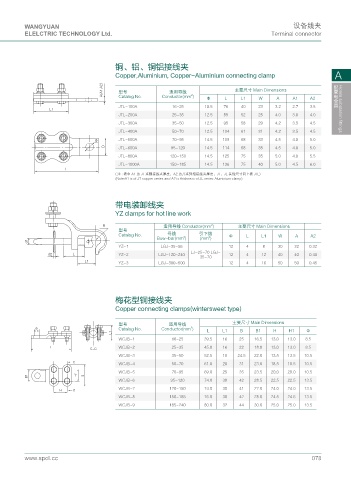

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector

铜、铝、铜铝接线夹

Copper,Aluminium, Copper-Aluminium connecting clamp A
# # # 型号 适用导线 主要尺寸 Main Dimensions
2
Conductor(mm )
Catalog No.
Φ L L1 W A A1 A2
JTL-100A 16-25 10.5 76 40 23 3.2 2.7 3.5
. 配变电金具 Hotels substation fittings
JTL-200A 25-35 12.5 85 52 25 4.0 3.0 4.0
JTL-300A 35-50 12.5 95 58 29 4.2 3.5 4.5
JTL-400A 50-70 12.5 104 61 31 4.2 3.5 4.5
 JTL-500A 70-95 14.5 109 68 33 4.5 4.0 5.0
& JTL-600A 95-120 14.5 114 68 35 4.5 4.0 5.0
JTL-800A 120-150 14.5 125 75 35 5.0 4.0 5.5
JTL-1000A 150-185 14.5 136 75 40 5.0 4.5 6.0
.
( 注 : 表中 A1 为 JT 系翻接线夹厚度，A2 为儿系列招接线夹厚度，JT、JL 其他尺寸同上表 JTL)
(Note:A1 is of JT copper series and A2 is thickness of JL series Aluminium clamp)

带电装卸线夹
YZ clamps for hot line work

2
4 适用导线 Conductor(mm ) 主要尺寸 Main Dimensions
型号
Catalog No. 母线 引下线 Φ L L1 W A A2
2
Buw-bar(mm ) (mm )
2
F
YZ-1 LGJ-35~95 12 4 8 30 32 0.32
LJ-25~70 LGJ-
F . YZ-2 LGJ-120~240 12 4 12 40 40 0.40
35~70
. YZ-3 LGJ-300~500 12 4 16 50 50 0.45

梅花型铜接线夹
Copper connecting clamps(wintersweet type)

型号 适用导线 主要尺寸 Main Dimensions
2
 Catalog No. Conductor(mm ) L L1 B B1 H H1 Φ
.
WCJB-1 16-25 39.5 16 25 16.5 13.0 13.0 8.5
. % % WCJB-2 25-35 45.0 16 22 18.0 13.0 13.0 8.5
WCJB-3 35-50 52.5 18 24.5 22.0 13.5 13.5 10.5
% WCJB-4 50-70 61.0 20 31 23.0 18.5 18.5 10.5

WCJB-5 70-95 69.0 25 35 23.5 20.0 20.0 10.5
$ * $
WCJB-6 95-120 74.0 30 42 28.5 22.5 22.5 13.5
WCJB-7 120-150 74.0 30 41 27.0 24.0 24.0 13.5
* %
WCJB-8 150-185 76.0 30 42 28.0 24.5 24.5 13.5
WCJB-9 185-240 80.0 32 44 30.0 25.0 25.0 13.5
