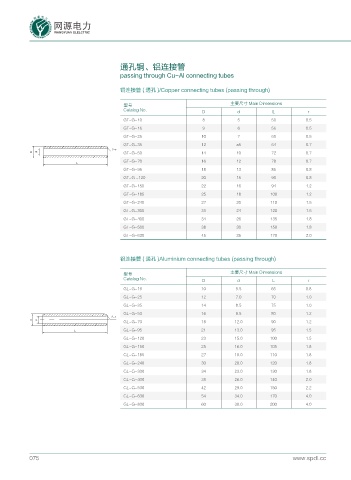

通孔铜、铝连接管

passing through Cu-Al connecting tubes

铜连接管 ( 通孔 )/Copper connecting tubes (passing through)

型号 主要尺寸 Main Dimensions
Catalog No.
D d L r
GT-G-10 8 5 50 0.5
GT-G-16 9 6 56 0.5
GT-G-25 10 7 60 0.5
GT-G-35 12 a5 64 0.7
T
& F GT-G-50 14 10 72 0.7
GT-G-70 16 12 78 0.7
.
GT-G-95 18 13 85 0.8
GT-G -120 20 15 90 0.8
GT-G-150 22 16 94 1.2
GT-G-185 25 18 100 1.2
GT-G-240 27 20 110 1.5
GT-G-300 31 24 120 1.5
GT-G-400 34 26 135 1.8
GT-G-500 38 30 150 1.8
GT-G-630 45 35 170 2.0

铝连接管 ( 通孔 )Aluminium connecting tubes (passing through)

型号 主要尺寸 Main Dimensions
Catalog No. D d L r

GL-G-16 10 5.5 65 0.8
GL-G-25 12 7.0 70 1.0
GL-G-35 14 8.5 75 1.0
GL-G-50 16 9.5 80 1.2
T
& F GL-G-70 18 12.0 90 1.2
. GL-G-95 21 13.0 95 1.5
GL-G-120 23 15.0 100 1.5
GL-G-150 25 16.0 105 1.8
GL-G-185 27 18.0 110 1.8
GL-G-240 30 20.0 120 1.8
GL-G-300 34 23.0 130 1.8
GL-G-400 38 26.0 140 2.0
GL-G-500 42 29.0 150 2.2
GL-G-630 54 34.0 170 4.0
GL-G-800 60 38.0 200 4.0

075 www.spdl.cc
