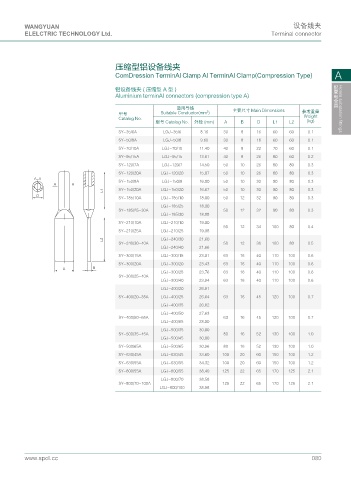

WANGYUAN 设备线夹
ELELCTRIC TECHNOLOGY Ltd. Terminal connector

压缩型铝设备线夹

ComDression TerminAl Clamp Al TerminAl CIamp(Compression Type) A

铝设备线夹 ( 压缩型 A 型 )
Aluminium terminAI connectors (compression type A)

适用导线 主要尺寸 Main Dimensions 配变电金具 Hotels substation fittings
2
型号 Suitable Conductor(mm ) 参考重量
Weight
Catalog No.
型号 Catalog No. 外径 (mm) A B D L1 L2 (kg)
SY-35/6A LGJ-35/6 8.16 30 8 16 60 60 0.1
SY-50/8A LGJ-50/8 9.60 30 8 18 60 60 0.1
SY-70/10A LGJ-70/10 11.40 40 8 22 70 60 0.1
SY-95/15A LGJ-95/15 13.61 40 8 26 80 60 0.2
SY-120/7A LGJ-120/7 14.50 50 10 26 80 80 0.3
SY-120/20A LGJ-120/20 15.07 50 10 26 80 80 0.3
# # SY-150/8A LGJ-150/8 16.00 50 10 30 90 80 0.3
# #
. SY-150/20A LGJ-150/20 16.67 50 10 30 90 80 0.3
&
SY-185/10A LGJ-185/10 18.00 50 12 32 90 80 0.3
LGJ-185/25 18.90
SY-185/25-30A 50 12 32 90 80 0.3
LGJ-185/30 18.88
SY-210/10A LGJ-210/10 19.00
50 12 34 100 80 0.4
SY-210/25A LGJ-210/25 19.98
. LGJ-240/30 21.60
SY-240/30~40A 50 12 36 100 80 0.5
LGJ-240/40 21.66
SY-300/15A LGJ-300/15 23.01 63 16 40 110 100 0.6
SY-300/20A LGJ-300/20 23.43 63 16 40 110 100 0.6
# $
LGJ-300/25 23.76 63 16 40 110 100 0.6
SY-300/25-40A
LGJ-300/40 23.94 63 16 40 110 100 0.6
LGJ-400/20 26.91
SY-400/20-35A LGJ-400/25 26.64 63 16 45 120 100 0.7
LGJ-400/35 26.82
LGJ-400/50 27.63
SY-400/50~65A 63 16 45 120 100 0.7
LGJ-400/65 28.00
LGJ-500/35 30.00
SY-500/35~45A 80 16 52 130 100 1.0
LGJ-500/45 30.00
SY-500/65A LGJ-500/65 30.96 80 16 52 130 100 1.0
SY-630/45A LGJ-630/45 33.60 100 20 60 150 100 1.2
SY-630/55A LGJ-630/55 34.32 100 20 60 150 100 1.2
SY-800/55A LGJ-800/55 38.40 125 22 65 170 125 2.1
LGJ-800/70 38.58
SY-800/70-100A 125 22 65 170 125 2.1
LGJ-800/100 38.98

www.spdl.cc 080
