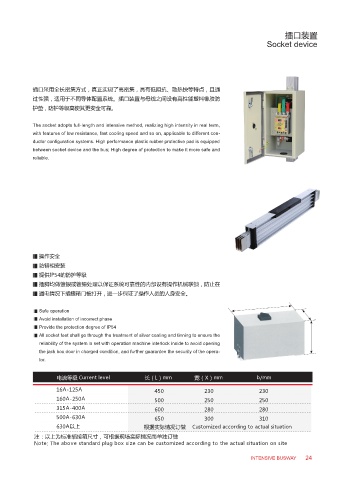

插口装置
Socket device

插口采用全长密集方式，真正实现了高密集，具有低阻抗、散热快等特点，且通
过性强，适用于不同导体配置系统。插口装置与母线之间设有高性能塑料橡胶防
护垫，防护等级高使其更安全可靠。

The socket adopts full-length and intensive method, realizing high intensity in real term,
with features of low resistance, fast cooling speed and so on, applicable to different con-
ductor configuration systems. High performance plastic rubber protective pad is equipped
between socket device and the bus; High degree of protection to make it more safe and
reliable.

操作安全
防错相安装
提供IP54的防护等级
插脚均做镀银或镀锡处理以保证系统可靠性的内部设有操作机械联锁，防止在
通电情况下插接箱门被打开，进一步保证了操作人员的人身安全。

Safe operation
Avoid installation of incorrect phase
Provide the protection degree of IP54
All socket feet shall go through the treatment of silver coating and tinning to ensure the
reliability of the system is set with operation machine interlock inside to avoid opening
the jack box door in charged condition, and further guarantee the security of the opera-
tor.

电流等级 Current level 长（L）mm 宽（X）mm b/mm

16A-125A 450 230 230
160A-250A 500 250 250
315A-400A 600 280 280
500A-630A 650 300 310
630A以上 根据实际情况订做 Customized according to actual situation
注：以上为标准插接箱尺寸，可根据现场实际情况而单独订做
Note: The above standard plug box size can be customized according to the actual situation on site
