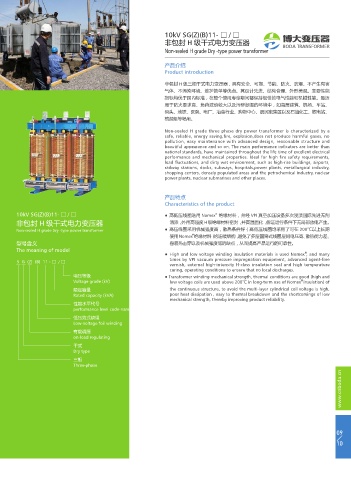

10kV SG(Z)(B)11- □ / □ 博大变压器
非包封 H 级干式电力变压器
Non-sealed H grade Dry -type power transformer BODA TRANSFORMER

产品介绍
Product introduction
非包封 H 级三相干式电力变压器，具有安全、可靠、节能、防火、防爆、不产生有害
气体、不污染环境、维护简单等优点。其设计先进、结构合理、外形美观。主要性能
指标均优于国内标准，在整个使用寿命期间都保持极佳的电气性能和机械性能。最适
用于防火要求高、负荷波动较大以及污秽潮湿的环境中，如高层建筑、机场、车站、
码头、地铁、医院、电厂、冶金行业、购物中心、居民密集区以及石油化工、核电站、
核潜艇等场所。

Non-sealed H grade three phase dry power transformer is characterized by a
safe, reliable, energy saving,fire, explosion,does not produce harmful gases, no
pollution, easy maintenance with advanced design, reasonable structure and
beautiful appearance and so on. The main performance indicators are better than
national standards, have maintained throughout the life time of excellent electrical
performance and mechanical properties. Ideal for high fire safety requirements,
load fluctuations, and dirty wet environment, such as high-rise buildings, airports,
railway stations, docks, subways, hospitals,power plants, metallurgical industry,
shopping centers, densely populated areas and the petrochemical industry, nuclear
power plants, nuclear submarines and other places.

产品特点
Characteristics of the product
10kV SG(Z)(B)11- □ / □ ● 高低压线圈选用 Nomex 绝缘材料，并经 VPI 真空加压设备多次浸渍国际先进无剂
非包封 H 级干式电力变压器 清漆，外用高强度 H 级绝缘材料密封，并高温固化，保证运行条件下无局部放电产生。
Non-sealed H grade Dry -type power transformer ● 高压线圈采用机械强度高，散热条件好（高低压线圈均采用了可在 200℃以上长期
使用Nomex 绝缘材料）的连续结构，避免了多层圆筒式线圈层间电压高、散热能力差、
型号含义 容易热击穿以及机械强度低的缺点，从而提高产品运行的可靠性。
The meaning of model
● High and low voltage winding insulation materials is used Nomex , and many
times by VPI vacuum pressure impregnation equipment, advanced agent-free
S G (Z) (B) 11 - □ / □
varnish, external high-intensity H-class insulation seal and high temperature
curing, operating conditions to ensure that no local discharges.
电压等级 ● Transformer winding mechanical strength, thermal conditions are good (high and
Voltage grade (kV) low voltage coils are used above 200℃ in long-term use of Nomex insulation) of
额定容量 the continuous structure, to avoid the multi-layer cylindrical coil voltage is high,
Rated capacity (kVA) poor heat dissipation , easy to thermal breakdown and the shortcomings of low
mechanical strength, thereby improving product reliability.
性能水平代号
performance level code-name
低压箔式绕组
Low-voltage foil winding
有载调压
on-load regulating
干式
Dry type
三相
Three-phase
