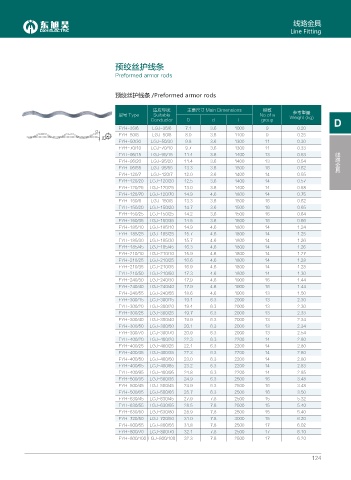

线路金具
Line Fitting
预绞丝护线条
Preformed armor rods
预绞丝护线条 /Preformed armor rods
适应导线 主要尺寸 Main Dimensions 根数
参考重量
型号 Type Suitable No of a Weight (kg)
Conductor D d L group D
FYH-35/6 LGJ-35/6 7.1 3.6 1000 9 0.20
&
FYH-50/8 LGJ-50/8 8.0 3.6 1100 9 0.25
F
FYH-50/30 LGJ-50/30 9.8 3.6 1300 11 0.30
FYH-70/10 LGJ-70/10 9.7 3.6 1300 11 0.33 线路金具
FYH-95/15 LGJ-95/15 11.4 3.6 1400 13 0.53
FYH-95/20 LGJ-95/20 11.4 3.6 1400 13 0.54
FYH-95/55 LGJ-95/55 13.3 3.6 1500 16 0.62
FYH-120/7 LGJ-120/7 12.0 3.6 1400 14 0.55
FYH-120/20 LGJ-120/20 12.5 3.6 1400 14 0.57
FYH-120/25 LGJ-120/25 13.0 3.6 1400 14 0.58
FYH-120/70 LGJ-120/70 14.9 4.6 1800 14 0.75
FYH-150/8 LGJ-150/8 13.3 3.6 1500 16 0.62
FYH-150/20 LGJ-150/20 14.7 3.6 1500 16 0.65
FYH-150/25 LGJ-150/25 14.2 3.6 1500 16 0.64
FYH-150/35 LGJ-150/35 14.5 3.6 1500 16 0.66
FYH-185/10 LGJ-185/10 14.9 4.6 1800 14 1.24
FYH-185/25 LGJ-185/25 15.7 4.6 1800 14 1.25
FYH-185/30 LGJ-185/30 15.7 4.6 1800 14 1.26
FYH-185/45 LGJ-185/45 16.3 4.6 1800 14 1.26
FYH-210/10 LGJ-210/10 15.9 4.6 1800 14 1.27
FYH-210/25 LGJ-210/25 16.6 4.6 1800 14 1.28
FYH-210/35 LGJ-210/35 16.9 4.6 1800 14 1.28
FYH-210/50 LGJ-210/50 17.3 4.6 1800 14 1.30
FYH-240/30 LGJ-240/30 17.9 4.6 1900 16 1.44
FYH-240/40 LGJ-240/40 17.9 4.6 1900 16 1.44
FYH-240/55 LGJ-240/55 18.6 4.6 1900 13 1.50
FYH-300/15 LGJ-300/15 19.1 6.3 2000 13 2.30
FYH-300/20 LGJ-300/20 19.4 6.3 2000 13 2.30
FYH-300/25 LGJ-300/25 19.7 6.3 2000 13 2.33
FYH-300/40 LGJ-300/40 19.9 6.3 2000 13 2.34
FYH-300/50 LGJ-300/50 20.1 6.3 2000 13 2.34
FYH-300/70 LGJ-300/70 20.9 6.3 2000 13 2.54
FYH-400/20 LGJ-400/20 22.3 6.3 2200 14 2.80
FYH-400/25 LGJ-400/25 22.1 6.3 2200 14 2.80
FYH-400/35 LGJ-400/35 22.3 6.3 2200 14 2.80
FYH-400/50 LGJ-400/50 23.0 6.3 2200 14 2.80
FYH-400/65 LGJ-400/65 23.2 6.3 2200 14 2.83
FYH-400/95 LGJ-400/95 24.8 6.3 2200 14 2.85
FYH-500/35 LGJ-500/35 24.9 6.3 2500 16 3.48
FYH-500/45 LGJ-500/45 24.9 6.3 2500 16 3.48
FYH-500/65 LGJ-500/65 25.7 6.3 2500 16 3.50
FYH-630/45 LGJ-630/45 27.9 7.8 2500 15 5.32
FYH-630/55 LGJ-630/55 28.5 7.8 2500 15 5.40
FYH-630/80 LGJ-630/80 28.9 7.8 2500 15 5.40
FYH-720/50 LGJ-720/50 31.0 7.8 3000 15 6.20
FYH-800/55 LGJ-800/55 31.8 7.8 2500 17 6.02
FYH-800/70 LGJ-800/70 32.1 7.8 2500 17 6.10
FYH-800/100 LGJ-800/100 32.3 7.8 2500 17 6.20
