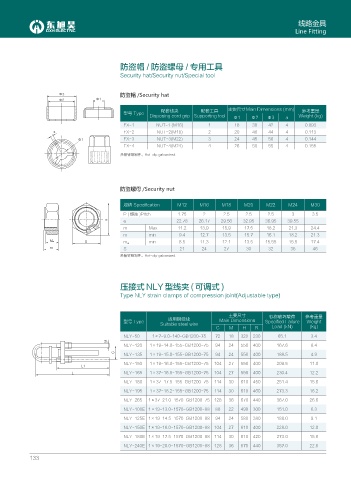

线路金具
Line Fitting

防盗帽 / 防盗螺母 / 专用工具

Security hat/Security nut/Special tool

 防盗帽 /Security hat
 
配套线夹 配套工具 主要尺寸Main Dimensions (mm) 参考重量
型号 Type
Disposing cord grip Supporting tool Φ1 Φ2 Φ3 a Weight (kg)
FX-1 NUT-1 (M16) 1 18 38 42 4 0.093
C FX-2 NUT-2(M18) 2 20 40 44 4 0.113
 FX-3 NUT-3(M22) 3 24 45 50 4 0.144
FX-4 NUT-4(M24) 4 26 50 55 4 0.155
热镀锌钢制件。Hot-dip galvanized.

防盗螺母 /Security nut

规格 Specification M12 M16 M18 M20 M22 M24 M30
P ( 螺距 )Pitch 1.75 2 2.5 2.5 2.5 3 3.5
G e 22.78 26.17 29.56 32.95 36.95 39.55
m Max 11.2 13.9 15.9 17.5 18.2 21.3 24.4
m min 9.4 12.7 13.5 15.7 16.1 18.2 21.3
/Y 5 m w min 8.5 11.3 12.1 13.5 15.55 15.5 17.4
O S 21 24 27 30 32 36 46
热镀锌钢制件。Hot-dip galvanized.

压接式 NLY 型线夹 ( 可调式 )
Type NLY strain clamps of compression joint(Adjustable type)

主要尺寸 标称破坏载荷 参考重量
适用钢绞线
型号 Type Main Dimensions Specified Failure Weight
Suitable steel wire
C M H R Load (kN) (kg)
NLY-50 1×7-9.0-140-GB1200-75 72 18 320 230 65.1 3.4
/
NLY-120 1×19-14.0-155-GB1200-75 94 24 556 400 167.6 8.4
% NLY-135 1×19-15.0-155-GB1200-75 94 24 556 400 188.5 4.9
NLY-150 1×19-16.0-155-GB1200-75 104 27 556 400 209.5 11.0
.
. NLY-165 1×37-16.8-155-GB1200-75 104 27 556 400 230.4 12.2
NLY-180 1×37-17.5-155-GB1200-75 114 30 610 450 251.4 15.6
NLY-195 1×37-18.2-155-GB1200-75 114 30 610 460 273.3 16.2
NLY-265 1×37-21.0-1570-GB1200-75 128 36 670 440 367.0 26.6
NLY-100E 1×19-13.0-1570-GB1200-88 88 22 490 300 151.0 6.3
NLY-125E 1×19-14.5-1570-GB1200-88 94 24 580 380 188.0 9.1
NLY-150E 1×19-16.0-1570-GB1200-88 104 27 610 400 228.0 12.0
NLY-180E 1×19-17.5-1570-GB1200-88 114 30 610 420 273.0 15.6
NLY-240E 1×19-20.0-1570-GB1200-88 128 36 670 440 357.0 22.6
