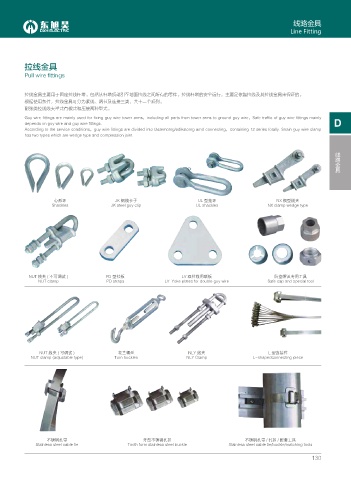

线路金具
Line Fitting

拉线金具

Pull wire fittings

拉线金具主要用于固定拉线杆塔。包括从杆塔顶端引至地面拉线之间所有的零件。拉线杆塔的安全运行，主要是依靠拉线及其拉线金具来保证的。
根据使用条件，拉线金具可分为紧线、调节及连接三类，共十二个系列。
耐张类拉线线夹塑式有楔式和压接两种型式。
Guy wire fittings are mainly used for fixing guy wire tower arms，including all parts from tower arms to ground guy wire，Safe traffic of guy wire fittings mainly
depends on guy wire and guy wire fittings. D
According to the service conditions，guy wire fittings are divided into fastemomg/adikstomg amd connecting，containing 12 series fotally. Strain guy wire clamp
has two types which are wedge type and compression joint.

线路金具

心形环 JK 钢线卡子 UL 型挂环 NX 楔型线夹
Shackles JK steel guy clip UL shackles NX clamp wedge type

NUT 线夹 ( 不可调试 ) PD 型挂板 LV 双拉线用联板 防盗帽及专用工具
NUT clamp PD straps LV Yoke plates for double guy wire Safe cap and special tool

NUT 线夹 ( 可调试 ) 花兰螺丝 NLY 线夹 L 型连接件
NUT clamp (adjustable type) Turn buckles NLY Clamp L-shapedconnecting piece

不锈钢扎带 牙型不锈钢扎扣 不锈钢扎带 / 扎扣 / 配套工具
Stainless steel cable tie Tooth form stainless steel buckle Stainless steel cable tie/buckle/matching tools

130
