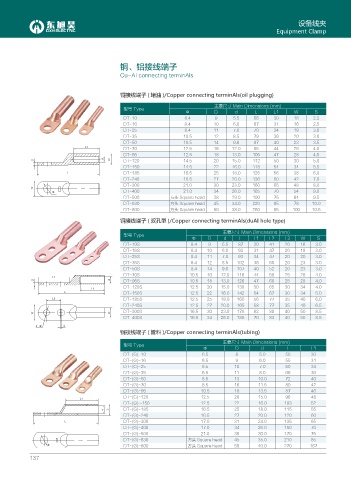

设备线夹
Equipment Clamp

铜、铝接线端子

Cu-AI connecting terminAls

铜接线端子 ( 堵油 )/Copper connecting terminAls(oil plugging)
主要尺寸 Main Dimensions (mm)
型号 Type
Φ D d L L1 W S
DT-10 8.4 9 5.5 66 30 16 2.2
DT-16 8.4 10 6.0 67 31 16 2.5
DT-25 8.4 11 7.0 70 34 18 3.0
DT-35 10.5 12 8.5 79 36 20 3.0
DT-50 10.5 14 9.6 87 40 23 3.5
.
DT-70 12.5 16 12.0 95 44 26 4.0
DT-95 12.5 18 13.0 105 47 28 4.5
F &
5 DT-120 14.5 20 15.0 112 50 30 5.0
DT-150 14.5 22 16.0 118 54 34 5.5
. DT-185 16.5 25 18.0 125 56 38 6.0
DT-240 16.5 27 20.0 136 60 42 7.0
DT-300 21.0 30 23.0 160 65 48 8.0
9
 DT-400 21.0 34 26.0 165 70 54 9.0
DT-500 方头 Square head 38 29.0 190 75 64 9.5
DT-630 方头 Square head 45 34.0 220 85 78 10.0
DT-800 方头 Square head 50 38.0 260 85 100 10.5

铜接线端子 ( 双孔型 )/Copper connecting terminAls(duAI hole type)
主要尺寸 Main Dimensions (mm)
型号 Type
Φ D d L L1 L2 L3 W S
DT-10S 8.4 9 5.5 87 30 41 20 16 3.0
DT-16S 8.4 10 6.0 93 31 47 20 18 3.0
DT-25S 8.4 11 7.0 93 34 47 20 20 3.0
DT-35S 8.4 12 8.5 102 36 50 20 23 3.0
DT-50S 8.4 14 9.6 107 40 52 20 23 3.0
DT-70S 10.5 16 12.0 118 44 58 25 28 4.0
.
5 F DT-95S 10.5 18 13.0 126 47 60 25 28 4.0
DT-120S 12.5 20 15.0 138 50 65 30 34 4.0
.
. DT-150S 12.5 22 16.0 142 54 67 30 34 5.0
. DT-185S 12.5 25 18.0 160 56 77 35 40 6.0
DT-240S 12.5 27 20.0 165 58 77 35 40 6.5
DT-300S 16.5 30 23.0 178 62 80 40 50 8.5
9 &
DT-400S 16.5 34 26.0 188 70 83 40 50 8.5

铜接线端子 ( 管料 )/Copper connecting terminAls(tubing)
主要尺寸 Main Dimensions (mm)
型号 Type
Φ D d L L1
DT-(G)-10 6.5 8 5.0 50 30
DT-(G)-16 6.5 9 6.0 55 31
DT-(G)-25 6.5 10 7.0 60 34
DT-(G)-35 6.5 11 8.0 66 36
DT-(G)-50 8.5 13 10.0 72 40
DT-(G)-70 8.5 16 11.5 80 42
DT-(G)-95 10.5 18 13.5 87 46
DT-(G)-120 12.5 20 15.0 96 48
.
DT-(G) -150 12.5 22 16.0 103 52
DT-(G)-185 16.5 25 18.0 115 55
F &
DT-(G)-240 16.5 27 20.0 120 60
. DT-(G)-300 17.0 31 24.0 135 65
DT-(G)-400 17.0 34 26.0 150 70
DT-(G)-500 21.0 38 30.0 170 75
DT-(G)-630 方头 Square head 45 35.0 210 85
 DT-(G)-800 方头 Square head 50 40.0 270 167
