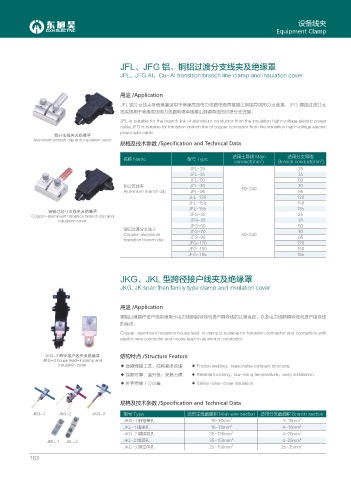

设备线夹
Equipment Clamp

JFL、JFG 铝、铜铝过渡分支线夹及绝缘罩

JFL，JFG AI，Cu-AI transition branch line clamp and insulation cover

用途 /Application
JFL 铝分支线夹及绝缘罩适用于绝缘高压电力线路电缆直接接出到铝导线的分支连接，JFG 铜铝过渡分支
线夹适用于绝缘高压电力线路电缆直接接出到铜导线的过渡分支连接。
JFL is suitable for the branch link of aluminium conductor from the insulation high-voltage electric power
cable.JFG is suitable for transition branch link of copper conductor from the insulation high-voltage electric
power wire cable.
铝分支线夹及绝缘罩
Aluminium branch clip and insulation cover
规格及技术参数 /Specification and Technical Data
适用主导线 Main 适用分支导线
名称 Name 型号 Type 2 2
conduct(mm ) Branch conduct(mm )
JFL-25 25
JFL-35 35
JFL-50 50
铝分支线夹 JFL-70 70
Aluminium branch clip JFL-95 50~240 95
JFL-120 120
JFL-150 150
JFL-185 185
铜铝过渡分支线夹及绝缘罩
Copper-aluminium transition branch clip and JFG-25 25
insulation cover JFG-35 35
JFG-50 50
铜铝过渡分支线夹 JFG-70 70
Copper-aluminium 50~240
transition branch clip JFG-95 95
JFG-120 120
JFG-150 150
JFG-185 185

JKG、JKL 型跨径接户线夹及绝缘罩
JKG, JK span then family type clamp and insulation cover

用途 /Application

铜铝过渡跨径接户线夹适用于电力线路铝导线与进户铜导线的过渡连接，以及电力线路铜导线与进户铝导线
的连接。
Copper-aluminium transition house lead-in clamp is suitable for transition connector and connection with
electric wire conductor and house lead-in aluminium conductor.

JKG-3 跨径接户线夹及绝缘罩 结构特点 /Structure Feature
JKG-3 house lead-inclamp and
insulation cover ◆ 摩擦焊接工艺，结构紧凑合理 ◆ Friction welding，reasonable compact structure.
◆ 接触可靠，温升低，安装方便 ◆ Reliable touching，low-rising temperature，easy installation.
◆ 外套绝缘十分可靠 ◆ Safety outer-cover insulation.

规格及技术参数 /Specification and Technical Data
JKG-1 JKG-2 JKG-3 型号 Type 适用主线截面积 Main wire section 适用分支截面积 Branch section
JKG-1 铜铝单孔 16~70mm 2 4~16mm 2
JKL-1 铝单孔 16~70mm 2 4~16mm 2
JKG-2 铜铝双孔 35~150mm 2 4~25mm 2
JKL-1 JKL-2 JKL-2 铝双孔 35~150mm 2 4~25mm 2
JKG-3 铜铝单孔 25~150mm 2 25~35mm 2
163
