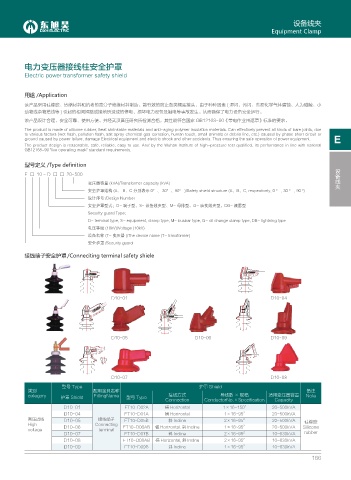

设备线夹
Equipment Clamp

电力变压器接线柱安全护罩

Electric power transformer safety shield

用途 /Application
该产品采用硅橡胶、热缩材料和抗老的高分子绝缘材料制造。能有效的防止各类裸露接头，由于种种因素 ( 湿闪、污闪、盐雾化学气体腐蚀、人为碰触、小
动物或杂物搭线等 ) 引起的相间短路或接地所造成的停电、损坏电力设备及触电等事故发生。从而确保了电力设备安全运行。
该产品设计合理、安全可靠、使用方便。并经武汉高压研究所检测合格，其性能符合国家 GB12168-90《带电作业用遮罩》标准的要求。
The product is made of silicone rubber, heat shrinkable materials and anti-aging polymer insulation materials. Can effectively prevent all kinds of bare joints, due
to various factors (wet flash, pollution flash, salt spray chemical gas corrosion, human touch, small animals or debris line, etc.) caused by phase short circuit or
ground caused by power failure, damage Electrical equipment and electric shock and other accidents. Thus ensuring the safe operation of power equipment. E
The product design is reasonable, safe, reliable, easy to use. And by the Wuhan Institute of high-pressure test qualified, its performance in line with national
GB12168-90 "live operating mask" standard requirements.

型号定义 /Type definition 设备线夹
F □ 10 - D □ □ 20-500
变压器容量 (kVA)/Transformer capacity (kVA)
安全护罩结构 (A、 B、C 分别表示 0°、 30°、90° )/Safety shield structure (A、B、C, respectively, 0 ° , 30 ° , 90 °)
设计序号 /Design Number
安全护罩型式：D- 端子型、S- 设备线夹型、M- 母排型、G- 油变线夹型、DB- 避雷型
Security guard Type:
D- terminal type, S- equipment, clamp type, M- busbar type, G- oil change clamp type, DB- lightning type
电压等级 (10kV)/Voltage (10kV)
设备名称 (T- 变压器 )/The device name (T- transformer)
安全护罩 /Security guard
接线端子安全护罩/Conneciting terminal safety shiele

D10-01 D10-04

D10-05 D10-06 D10-09

D10-07 D10-08
型号 Type 护罩 Shield
类别 配用金具名称 备注
category 护罩 Shield FittingName 型号 Type 接线方式 导线数 × 规格 适用变压器容置 Note
Connection ConductorNo.×Specification Capacity
D10-01 FT10-D02A 横 Horizontal 1×16~150 2 20~500kVA
D10-04 FT10-D01A 横 Horizontal 1×16~95 2 20~500kVA
高压进线 D10-05 接线端子 FT10-D05B 斜 Incline 2×16~95 2 20~500kVA
High Connecting FT10-D06AB 横 Horizontal. 斜 Incline 1×16~95 2 20~500kVA 硅橡胶
voltage D10-06 terminal Silicone
D10-07 FT10-D07B 斜 Incline 2×16~95 2 10~630kVA rubber
D10-08 FT10-D08AB 横 Horizontal, 斜 Indine 2×16-95 2 10~630kVA
D10-09 FT10-D09B 斜 Incline 1×16~95 2 10~630kVA
