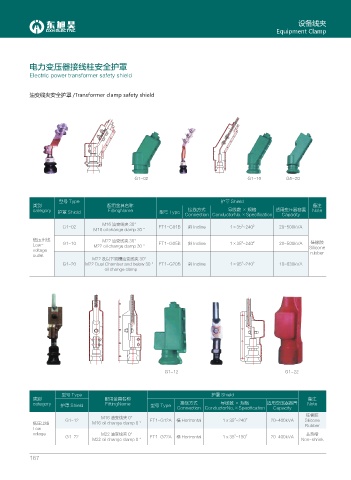

设备线夹
Equipment Clamp

电力变压器接线柱安全护罩

Electric power transformer safety shield

油变线夹安全护罩 /Transformer clamp safety shield

G1-02 G1-10 G1-20

型号 Type 护罩 Shield
类别 配用金具名称 备注
category 护罩 Shield FittingName 型号 Type 接线方式 导线数 × 规格 适用变压器容置 Note
Connection ConductorNo.×Specification Capacity
M16 油变线夹 30°
2
G1-02 FT1-G01B 斜 Incline 1×35 ~240 2 20-500kVA
M16 oil change clamp 30 °
低压出线 M22 油变线夹 30° 2 2 硅橡胶
Low- G1-10 M22 oil change clamp 30 ° FT1-G05B 斜 Incline 1×35 ~240 20~500kVA
voltage Silicone
outlet rubber
M22 及以下双槽油变线夹 30°
2
G1-20 M22 Dual Chamber and below 30 ° FT1-G20B 斜 Incline 1×95 ~240 2 10~630kVA
oil change clamp

G1-12 G1-22

型号 Type 护罩 Shield
类别 配用金具名称 备注
category 护罩 Shield FittingName 型号 Type 接线方式 导线数 × 规格 适用变压器容置 Note
Connection ConductorNo.×Specification Capacity
硅橡胶
M16 油变线夹 0°
2
G1-12 FT1-G12A 横 Horizontal 1 x 35 ~240 2 20-400kVA Silicone
低压出线 M16 oil change clamp 0 ° Rubber
Low
vdlage M22 油变线夹 0° 非热缩
2
G1-22 FT1-G22A 横 Horizontal 1 x 35 ~150 2 20-400kVA
M22 oil change clamp 0 ° Non-shrink
167
