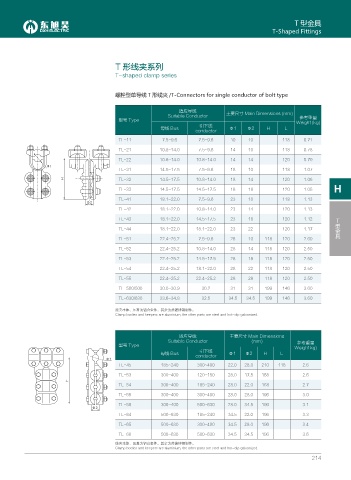

T 型金具
T-Shaped Fittings
T 形线夹系列
T-shaped clamp series
螺栓型单导线 T 形线夹 /T-Connectors for single conductor of bolt type
适应导线
Suitable Conductor 主要尺寸 Main Dimensions (mm) 参考重量
型号 Type Weight (kg)
引下线
母线 Bus Φ1 Φ2 H L
conductor
TL-11 7.5~9.6 7.5~9.6 10 10 118 0.71
TL-21 10.8~14.0 7.5~9.6 14 10 118 0.78
TL-22 10.8~14.0 10.8~14.0 14 14 120 0.79
TL-31 14.5~17.5 7.5~9.6 18 10 118 1.07
* TL-32 14.5-17.5 10.8~14.0 18 14 120 1.06
H
TL-33 14.5~17.5 14.5~17.5 18 18 120 1.05
TL-41 18.1~22.0 7.5~9.6 23 10 118 1.13
TL-42 18.1~22.0 10.8~14.0 23 14 120 1.13
TL-43 18.1~22.0 14.5~17.5 23 18 120 1.12 T
型
TL-44 18.1~22.0 18.1~22.0 23 22 120 1.17
金
具
TL-51 22.4~25.2 7.5~9.6 26 10 118 120 2.60
TL-52 22.4~25.2 10.8~14.0 28 14 118 120 2.50
TL-53 22.4~25.2 14.5~17.5 28 18 118 120 2.50
TL-54 22.4~25.2 18.1~22.0 28 22 118 120 2.50
TL-55 22.4~25.2 22.4~25.2 28 28 118 120 2.50
TL-500/500 30.0~30.9 30.2 31 31 199 146 3.60
TL-630/630 33.6~34.8 32.5 34.5 34.5 199 146 3.60
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.
适应导线 主要尺寸 Main Dimensions
Suitable Conductor (mm) 参考重量
型号 Type Weight kg)
引下线
母线 Bus conductor Φ1 Φ2 H L
TL-45 185~240 300~400 22.0 28.0 210 118 2.6
TL-53 300~400 120~150 28.0 17.5 168 2.6
*
TL-54 300~400 185~240 28.0 22.0 168 2.7
TL-55 300~400 300~400 28.0 28.0 196 3.0
TL-56 300~400 500~630 28.0 34.5 196 3.1
TL-64 500~630 185~240 34.5 22.0 196 3.3
TL-65 500~630 300~400 34.5 28.0 196 3.4
TL-66 500~630 500~630 34.5 34.5 196 3.6
线夹本体、压盖为铝合金件，其余为热镀锌钢制件。
Clamp bodies and keepers are aluminium, the other parts are steel and hot-dip galvanized.
